18W White Wall Mount Switching Power Supply With AU Plug High Speed
  • 18W White Wall Mount Switching Power Supply With AU Plug High Speed
  • 18W White Wall Mount Switching Power Supply With AU Plug High Speed
  • 18W White Wall Mount Switching Power Supply With AU Plug High Speed
  • 18W White Wall Mount Switching Power Supply With AU Plug High Speed

18W White Wall Mount Switching Power Supply With AU Plug High Speed

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS/KA/PSE/CCC
Model Number 18VA
Product Details
Product Name:
Ac Wall Mount Adapter
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Place Of Origin:
Shenzhen China
Certificates:
CE GS LVD EMC
ACplug:
AU
Package:
White Box + Carbon
DC Cable:
1.5 M Standard
Materials:
ABS + PC
High Light:

universal power adapter

,

ac universal power adapter

,

switching power supply with au plug

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

18W white wall mount AU plug high efficiency switching power supply with CE GS LVD



18W AU 2PIN wall mount adapter below:



Brief Description:



1. Input voltage:90 - 264VAC

2. Input frequency:47 - 63Hz

3. Output voltage:12VDC

4. Output current:1.5A

5. Colour:white black

6. Safety licences:ETL FCC CE GS LVD PSE KC CCC SAA

7. Connection:plug in

8. Package:white box or PE bag



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 1500MA
Ripple: 150mVp-p Max
Safety Approvals ETL FCC CE GS PSE CCC KA SAA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees



Features:



1. High efficiency:>83%

2. Stand by power consumption:0.1w(max)

3. Low ripple&noise:150mVp-p(max)

4. Four protection available:OLP,OCP,SCP,OVP

5. Customization is high welcome



 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world.

2. The most important is our pricing and service is much better than other adapter suppliers.

3. Our lead time is 15 - 25 days after recevied the PO.

4. Our R / D team can design the new adapter according to customer's needs.

5  Our QC / QA staffs check and test each adapter before shipping.

6. We always focus on the quality and servise that cause we can provide good quality adapter and prefect after sales servise.

7. We can offer 0.1% of the total otder quantity adapters to replace the failed adapters during the gearantee period.

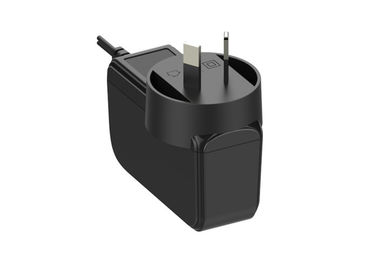

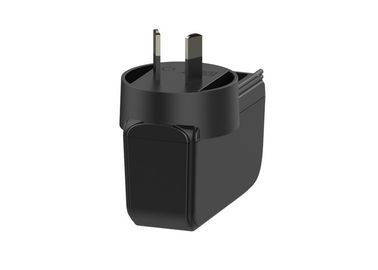

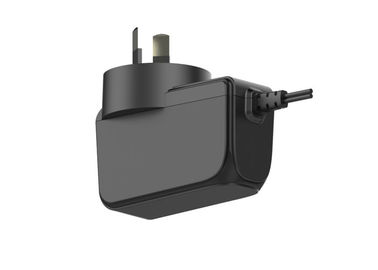

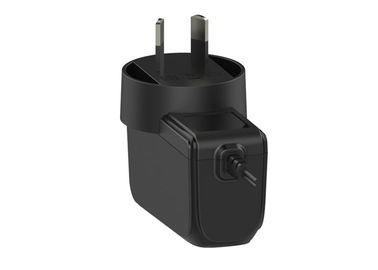

12V 18W AU plug wall mount adaper picture:

18W White Wall Mount Switching Power Supply With AU Plug High Speed 0
