Universal AC Power Adapter
>
|
| Place of Origin | Shenzhen Guangdong China |
| Brand Name | REEU |
| Certification | ETL/CE/GS/PSE/KA/CCC/FCC/EMI |
| Model Number | 12AV |

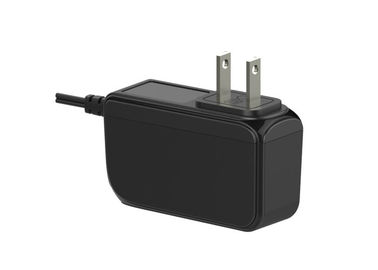

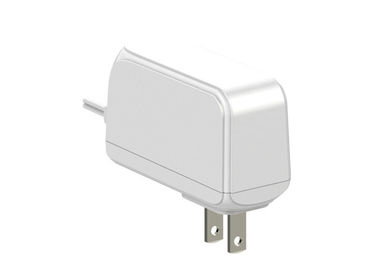

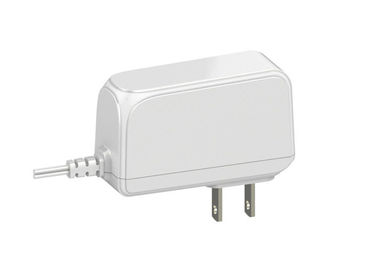

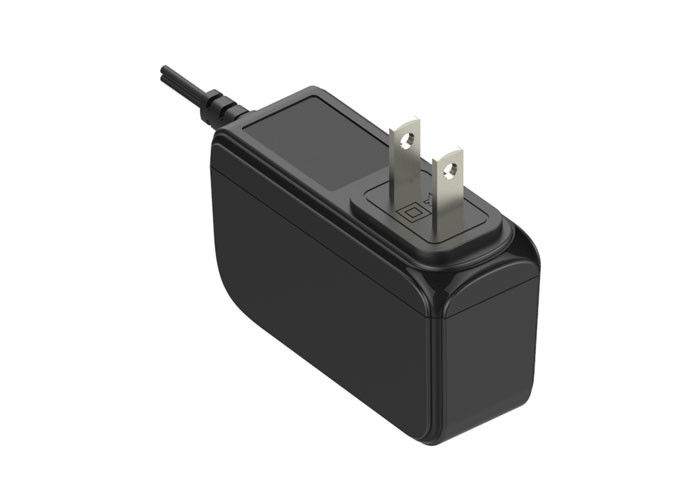

High efficiency 12W 90 - 264VAC AC Power Switching Supply White / Black
12W AC switching wall mount power adapter
Brief Description:
AC to DC 12W power adapter
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:5VDC - 24VDC
Output current:500MA - 2000MA
Colour:black
Connection:plug in
Safety approval:CE ETL PSE CCC SAA KA
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 2-4 hours | |
| Efficiency: | >83% | |
| MTBF: | 50000 hours | |
| Iusulation: | yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64Hz | |
| Rate input voltage: | 100-240Vdc | |
| Rate input frequency: | 50 / 60 Hz | |
| DC Output | Voltage range: | 5VDC - 24VDC |
| Current range: | 500MA - 2000MA | |
| Ripple: | 120mVp-p | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
1. Air purifier water purifier LCD screen
2. POS system
3. Electronis toys and cosmetic machine
4. Set-top-box, router
5. Digital carema
Competitive advantage:
| Quick response to customer's requested within 24 hours |
| High quality management system: ISO9001 and ISO14001 |
| Competitive pricing:our pricing is better than others |
| we have 10 production lines to make sure the lead time is less than 15 days |
| Worldwide safety approvals are available |
| 0.1% back up of the total order will be free shipped to customers |
| Free samples are provided to customers for funtion testing |
Why you can trust us?
1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service are much better than other adapter suppliers.
3.We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 20 years experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
6. We try to get the best shipping cost for each customer who came from worldwide.
7. We always focus on our quality and each adapter must be met all quality standards before shipping.
8. We manage the materils very well and our lead time can be 15-20 days after confirmed the PO
12W AC DC universal wall mount power adapter:
