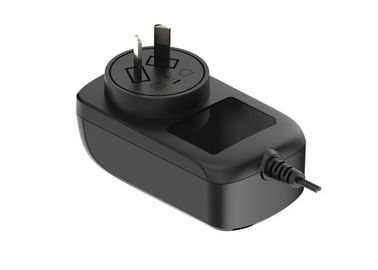

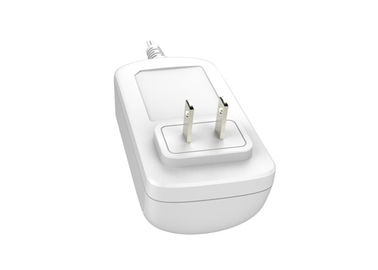

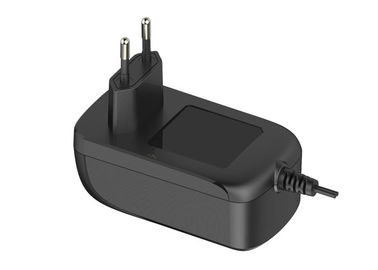

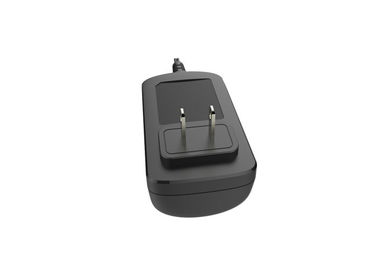

15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug
  • 15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug
  • 15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug
  • 15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug
  • 15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug
  • 15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug

15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS/KA/PSE/CCC/SAA
Model Number 15VA 18VA 24VA 36VA
Product Details
Product Name:
Ac Dc Power Adapter
Input:
90-264 Vac
Output:
5-24V / 0.75-3A
AC Plug:
US EU UK CN JP AU KA
Color:
Black White
Burn In:
100% Full Load At 115 VAC For 4 Hours
MTBF:
50000 Hours
Material:
PVC
DC Cable:
1.2M 1.5M 1.8M
Package:
White Box + Carbon
High Light:

universal power adapter

,

universal ac charger

,

OEM Universal AC Switching Power Supply

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description



15W - 36W UK EU US CN JP KA plug universal l mount power adapter for router,CCTV digital camera



18W wall mount adapter



The wall mount adapter has a univeral input voltage 90 - 264VAC and frequency range 47 - 64 Hz, the output current max 2000Ma, the safety certificates is ETL FCC CE GS CCC PSE and EMC, the adapter was sold to over 50 countries in the world with high quality and more reliable.


Brief Description:

Input voltage:90-264VAC
Input frequency:47-63Hz
Output voltage:15VDC
Output current:1000MA
Colour:black
Safety licences:ETL FCC CE GS PSE CCC AU
Connection:universal plug

Package:white box + carbon


Specification:


Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 15VDC
Current range: 1000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees


Features:



Efficiency is more than 88% to meet energy star class VI
All protectios are a must as OVP OCP SCP
All materials meet RoHS standard
Low ripple and noise can match the standard



Competitive advantage:



1. We produce most of the raw materials and can better manage the cost, so our pricing is much better than others



2. We have international quality standard much as ISO9001 and ISO 14001 to guarantee each adapter good quality.



3. This adapter has pass ETL CE GS PSE EMC KA CCC SAA safety approvals  and the quality is very good, also the efficiency can meet energy star requirements.



4. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10-20 experience and we have professional management in QC, purchasing and production.



5. We are a adapter manufacturer and we have own product ,but we also offer OEM and ODM to customers who are from the worldwide.



6. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,that casue our lead time is lesss than 15 days after received the formal purchasing order.



7. we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing and shipping.



8. We have some contracted forwarder to provide very good shipping cost and fast shipping time to all customers.
9. Our customers came from more than 50 countries around the world and we provide after -sale service within 24 hours.

10. We offer 0.1% of the order quantity adapters for back up and provide same quantity adapters for replacement if there are failed adapters during the guarantee period.


 Application:


Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys

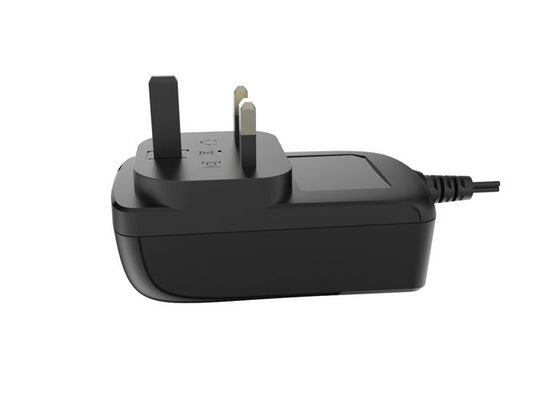

15V 1A KA plug wall mount adaper picture:

 15 - 36W Universal AC Switching Power Supply with UK EU US CN JP KA plug 0
