12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter

China 12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter supplier
12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter supplier 12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter supplier 12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter supplier 12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter supplier

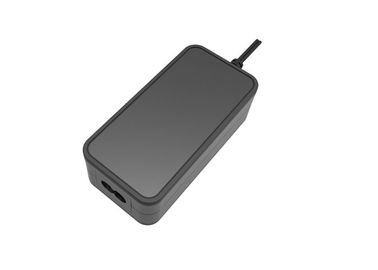

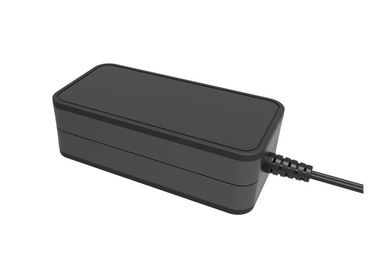

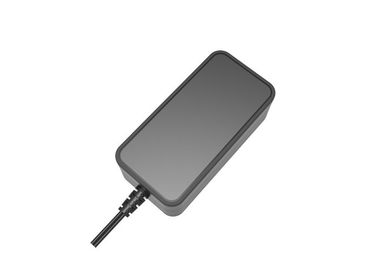

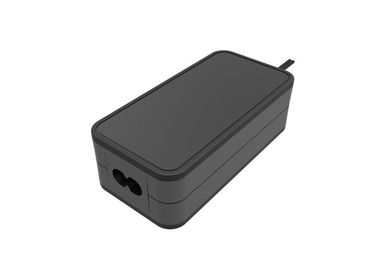

Large Image :  12V 2A AC DC Power Adapter 24W 12V 1.5A 18W Universal Desktop AC Adapter

Product Details:

Place of Origin: Shenzhen Guangdong China
Brand Name: REEU
Certification: UL/cUL/CE/GS/PSE/KA/CCC/FCC
Model Number: 18D/24D

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotition
Packaging Details: white box+carbon
Delivery Time: 15-20 days
Payment Terms: T/T, L/C
Supply Ability: 500,000pec per month
Contact Now
Detailed Product Description
Output Voltage: 5-24VAC Input: 100-240V
Burn-in: More Than 4 Hours Warranty: 2 Years
Product Name: Desk-top Switching Power Supply DC Plug: 5.0x2.5/5.5x2.1
AC Cable: 1.5m Standard Package: White Box + Carbon

12V 2A 24W 12V 1.5A 18W universal AC - DC desk - top switching power adapter



Description:



Input voltage:90 - 264VAC

Input frequency:47 - 63Hz

Output:12V 1.5A,12V 2A

Color:black

AC plug:US,EU,UK,CN,JP,KA

AC cord:1.2m 1.5m 1.8m



Specification:





Input Rated input voltage 100-240Vac
Input voltage range 90-264Vac
Rated frequency 50-60 Hz
Input frequency range 47-63hz
Input AC current 2A
Inrush current 20A Max
Output Rated output voltage 12Vdc
Rated output current 2000Ma
Rated power 24W
Ripple and noise 120mVp-p
Standby power consumption 0.1W Max
Turn-on 2S
Hold-up 5mS
OVP Yes
OCP Yes
Short Circuit prodection Yes
Reliability Hi-pot 3000Vac
Burn-In Full load at 115Vac for 4 hours
Leakage current 0.25mA
EMI standards FCC part 15
RoHS compliant
MTBF 50000hours
Drop test Yes
Insulation resistance Yes
Environmental Operating temperature 0-40 degrees
Operating humidity 20-90%
Storge temperature -20-80 degrees
Storge humidity 0-95%
Safety approvals UL CUL FCC CE GS KA CCC SAA PSE
Warranty 2 years



Features:



1. High efficiency:>83% at least

2. Safety licences:main approvals of the world are available

3. Burn in:100% full load

4. MTBF:50000 hours

5. EFT:Follow IEC-61000-4-4

6. ESD:The power is capable to withstand ESD test voltage at any pointaround the enclosure.



Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1. 2pcs free samples are available, we are free of shipping cost by UPS Fedex.



2. High quality standard requested,we strictly follow up the quality management system as ISO9001.



3. We have more than 400 first line works and 10 production lines that cause our lead time is 15 days after received the formal orders.



4. In order to settle any problem adapter, we have set up the QE department to focuson the after sales service.



5.Our customers come from worldwide, and our oversea sales team can quickly answer any question from customer within 24 hours.



Why you can trust us?



This adapter has pass UL CE GS PSE EMC KA CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

The most important is our pricing and service is much better than other adapter suppliers.

We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
