90 - 264VAC Ac To Dc Switching Power Supply 12V 2A With CE EMC Approvals

90 - 264VAC Ac To Dc Switching Power Supply 12V 2A With CE EMC Approvals

    • 90 - 264VAC Ac To Dc Switching Power Supply 12V 2A  With CE EMC Approvals
    • 90 - 264VAC Ac To Dc Switching Power Supply 12V 2A  With CE EMC Approvals
    • 90 - 264VAC Ac To Dc Switching Power Supply 12V 2A  With CE EMC Approvals
    • 90 - 264VAC Ac To Dc Switching Power Supply 12V 2A  With CE EMC Approvals
  • 90 - 264VAC Ac To Dc Switching Power Supply 12V 2A  With CE EMC Approvals

    Product Details:

    Place of Origin: Shenzhen guangdong China
    Brand Name: REEU
    Certification: ETL/FCC/EMI/CE/GS/KA/CCC
    Model Number: 24VA

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotition
    Packaging Details: white box+carbon
    Delivery Time: 15-20 days after confirmed the order
    Payment Terms: T/T, L/C
    Supply Ability: 800,000pcs per month
    Contact Now
    Detailed Product Description
    Color: Black Efficiency: Energy Star Class 6
    Burn-in: More Than 4 Hours Warranty: 2 Years
    Connetion: Wall Mount Plug In Material: PVC
    AC Plug: Universal Package: White Box + Carbon
    High Light:

    ac dc charger adapter

    ,

    universal ac dc power adapter

    90 - 264VAC ac - dc switching power adapter 12V 2A with CE EMC approvals





    12V 2A UK 2PIN AC DC universal  wall mount  power adapter:



    Brief description:



    Input voltage:90 - 264VAC

    Input frequency:47 - 63Hz

    Output voltage:12VDC

    Output current:2000MA

    Colour:white / black

    Safety licences:ETL PSE KA CCC FCC CE GS EMC

    Connection:plug in



    Specification:



    Electrical Hi-pot Test: 3000VAC
    Burn-In Test: 100% full load 2-4hours
    Efficiency: 86%
    MTBF: 50000 hours
    Warranty 2 years
    AC Input voltage range: 90-264VAC
    Input frequency: 47-63Hz
    Input current: 0.8A
    Leakage current: 0.25mA max at 240VAC input
    DC Output Voltage range: 12VDC
    Current range: 2000MA
    Ripple: 150mVp-p Max
    Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
    Storage Temperature -20 degrees to 85 degrees
    Normal Working Temperature 0 degree to 40 degrees



    Features:



    1. High efficiency:>83%

    2. Stand by power consumption:0.1w(max)

    3. Low ripple&noise:150mVp-p(max)

    4. Four protection available:OLP,OCP,SCP,OVP



     Application:



    Video equipemnt TV box CCTV, router, set-top-box
    Audio equipment Speaker, microphone,recording device
    Communication device smart phone nootbook,tablet PC
    Household appliance air purifier, water purifier,solar panel
    Medical equipment cosmetic machine,glucose meter
    others PS4,segway,game player, electronic toys



    Competitive advantage:



    1. We produced most of the materials at our own plant, we can better manage the cost.

    2. High quality standard as ISO9001 and ISO 14001

    3. Better lead time is within 15 days after recevied the confirmed PO

    4. Professional R / D team

    5. Quick response to customers requirement within 24 hours

    6. Prefect after - sales service



    Brief company profle:



    This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC SAA safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

    The most important is our pricing and service is much better than other adapter suppliers.

    We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.

    We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

    Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

    We have some contracted forwarders to ship the adapters with lower shipping cost.

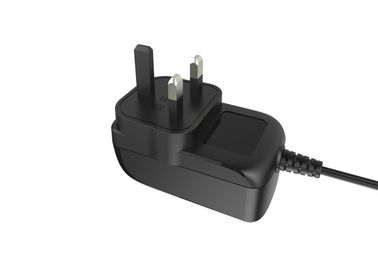

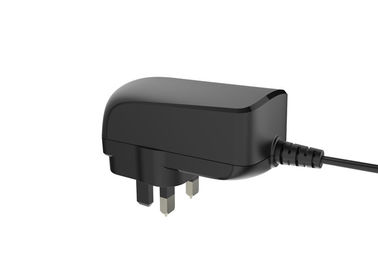

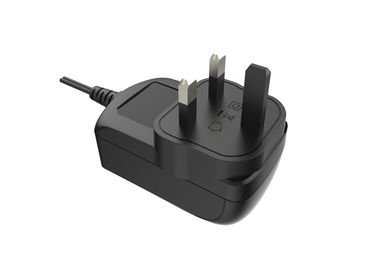

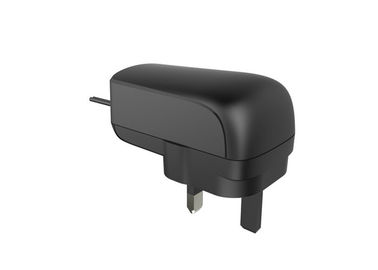

    12V 2A UK Plug in universal ac dc wall mount power adaper picture:



    90 - 264VAC Ac To Dc Switching Power Supply 12V 2A  With CE EMC Approvals 0
