Universal 120 240VAC AC DC Power Adapter , 12V 2A AC To DC Power Adapter

Universal 120 240VAC AC DC Power Adapter , 12V 2A AC To DC Power Adapter

    • Universal 120 240VAC AC DC Power Adapter , 12V 2A  AC To DC Power Adapter
    • Universal 120 240VAC AC DC Power Adapter , 12V 2A  AC To DC Power Adapter
    • Universal 120 240VAC AC DC Power Adapter , 12V 2A  AC To DC Power Adapter
    • Universal 120 240VAC AC DC Power Adapter , 12V 2A  AC To DC Power Adapter
  • Universal 120 240VAC AC DC Power Adapter , 12V 2A  AC To DC Power Adapter

    Product Details:

    Place of Origin: Shenzhen guangdong China
    Brand Name: REEU
    Certification: ETL FCC EMI CE GS KA PSE CCC
    Model Number: 24VA

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: white box + carbon
    Delivery Time: 15 - 20 days after confirmed the order
    Payment Terms: T/T, L/C
    Supply Ability: 800,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: AC Power Supply Efficiency: Energy Star Class 6
    Burn In: More Than 4 Hours Warranty: 2 Years
    Input Voltage: 90-264 Vac Output Voltage: 12Vdc
    Output Current: 2000Ma Color: White Black
    AC Plug: UK EU US JP DC Cable: 1.5M Standard
    High Light:

    ac dc charger adapter

    ,

    universal ac dc power adapter

    Universal 120 240VAC AC DC Power Adapter , 12V 2A AC To DC Power Adapter



    12V 2A EU AU US UK  2PIN ac dc wall mount adapter



    Brief Description:



    This is wall mount power adapter, with single range 90-264Vac and output can be veriation according to customers need, but the max power watt is 24W.The adapter has universal safety approvals such as ETL CE GS CCC PSE .In order to make sure high quality, the adapter must be checked following up 4 times checking by QC and QA department.Some parameters as below:



    Input voltage:90 - 264VAC

    Input frequency:47 - 63Hz

    Output voltage:12VDC

    Output current:2000MA

    Colour:white black

    Safety licences:CE ETL PSE FCC

    Connection:UK plug in

    MTBF:50000 Hours

    Warranty:2Years



    Specification:



    Electrical Hi-pot Test: 3000VAC
    Burn-In Test: 100% full load 2-4hours
    Efficiency: 86%
    MTBF: 50000 hours
    Warranty 2 years
    AC Input voltage range: 90-264VAC
    Input frequency: 47-63Hz
    Input current: 0.8A
    Leakage current: 0.25mA max at 240VAC input
    DC Output Voltage range: 12VDC
    Current range: 2000MA
    Ripple: 150mVp-p Max
    Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
    Storage Temperature -20 degrees to 85 degrees
    Normal Working Temperature 0 degree to 40 degrees



    Features:



    High efficiency at least is 86%
    Stand by power cosunption is around 0.1w max
    Low ripple and noise normal is 150mVp-p
    Each adapter has OLP OCP SCP OVP protection



     Application:



    Video equipemnt TV box CCTV, router, set-top-box
    Audio equipment Speaker, microphone,recording device
    Communication device smart phone nootbook,tablet PC
    Household appliance air purifier, water purifier,solar panel
    Medical equipment cosmetic machine,glucose meter
    others PS4,segway,game player, electronic toys



    Competitive advantage:



    Our pricing is much better others manufacturers
    ISO14001 and ISO9001 are our high quality standards
    We have 10 production lines to guaranty the 15 days lead time.
    We have professional R / D team and management
    We have QE departement to handle customers feed back
    We have 30 oversea sales to offer best and quick service



    Quick company profile:



    We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 experience and we have professional management in QC, purchasing and production.

    We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

    Our monthly production capacity is 1,100,000 pcs adapters and we have four production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.

    We have worldwide satety licences ETL FCC CE GS CCC PSE EMC and our customes are from around 50 countries in the world,

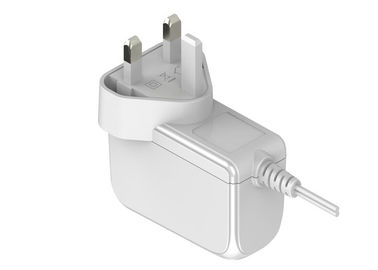

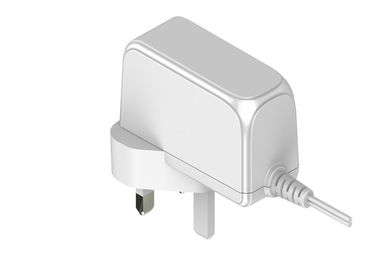

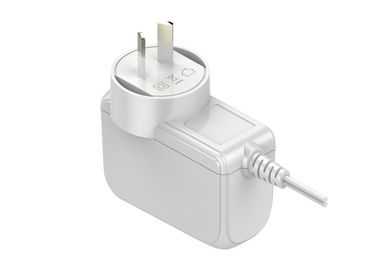

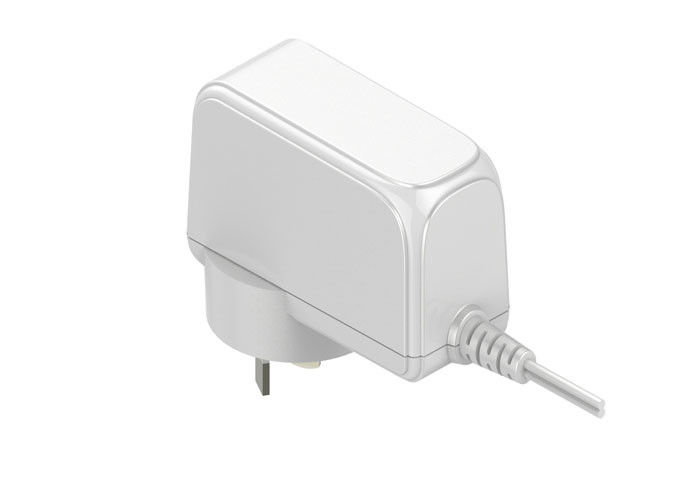

    12V 2A UK AU US EU  plug in ac dc wall mount adaper:

    Universal 120 240VAC AC DC Power Adapter , 12V 2A  AC To DC Power Adapter 0
