Product Details:
Payment & Shipping Terms:
|
| Product Name: | AC Power Supply | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn In: | More Than 4 Hours | Warranty: | 2 Years |
| Input Voltage: | 90-264 Vac | Output Voltage: | 12Vdc |
| Output Current: | 2000Ma | Color: | White Black |
| AC Plug: | UK EU US JP | DC Cable: | 1.5M Standard |
| High Light: | ac dc charger adapter,universal ac dc power adapter |
||

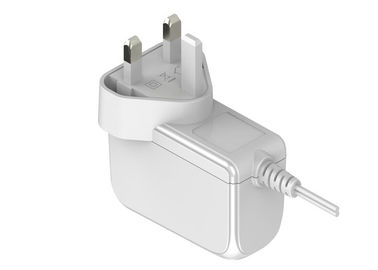

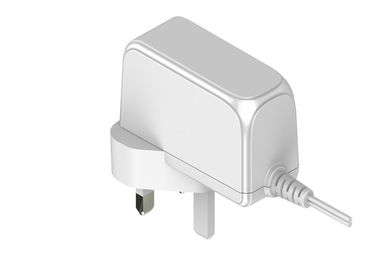

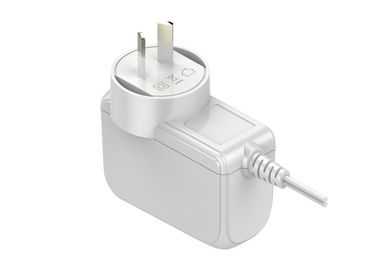

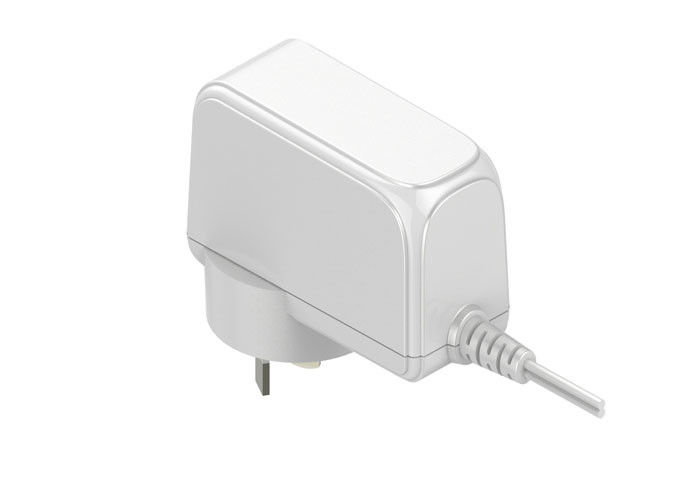

Universal 120 240VAC AC DC Power Adapter , 12V 2A AC To DC Power Adapter
12V 2A EU AU US UK 2PIN ac dc wall mount adapter
Brief Description:
This is wall mount power adapter, with single range 90-264Vac and output can be veriation according to customers need, but the max power watt is 24W.The adapter has universal safety approvals such as ETL CE GS CCC PSE .In order to make sure high quality, the adapter must be checked following up 4 times checking by QC and QA department.Some parameters as below:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white black
Safety licences:CE ETL PSE FCC
Connection:UK plug in
MTBF:50000 Hours
Warranty:2Years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
| High efficiency at least is 86% |
| Stand by power cosunption is around 0.1w max |
| Low ripple and noise normal is 150mVp-p |
| Each adapter has OLP OCP SCP OVP protection |
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
| Our pricing is much better others manufacturers |
| ISO14001 and ISO9001 are our high quality standards |
| We have 10 production lines to guaranty the 15 days lead time. |
| We have professional R / D team and management |
| We have QE departement to handle customers feed back |
| We have 30 oversea sales to offer best and quick service |
Quick company profile:
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,100,000 pcs adapters and we have four production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.
We have worldwide satety licences ETL FCC CE GS CCC PSE EMC and our customes are from around 50 countries in the world,
12V 2A UK AU US EU plug in ac dc wall mount adaper:
