24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount
  • 24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount
  • 24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount
  • 24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount
  • 24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount

24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS
Model Number 24VA
Product Details
Color:
White / Black
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Connetion:
Wall Mount Plug In
Material:
PVC
AC Plug:
Universal
Package:
White Box + Carbon
Product Name:
Ac Dc Wall Mount Adapter
Place Of Origin:
Shenzhen China
High Light:

power switching supply

,

power supply switching

,

2A 12 Volt AC Switching Power Supply

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotition
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

24W UK plug Black ac - dc switching power adapter 12V 2A with CE KA SAA approvals





12V 2A UK  AC DC universal  wall mount  power adapter:



Brief description:



Input voltage:90 - 264VAC

Input frequency:47 - 63Hz

Output voltage:12VDC

Output current:2000MA

Colour:white / black

Safety licences:ETL FCC CE GS EMC CCC PSE KA SAA

Connection:plug in



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 2000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees



Features:



1. High efficiency:>83%

2. Stand by power consumption:0.1w(max)

3. Low ripple&noise:150mVp-p(max)

4. Four protection available:OLP,OCP,SCP,OVP



 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1. Good pricing:We can produe most of the materials, the cost is better than others.



2. High quality standard:We strictly follow the ISO and other quality standards.



3. Better lead time:We have 10 production lines and our lead time can be within 15 days.



4. Professional R / D team:We have over 20 R/D to design the new adaptes to match the market needs.



5. Quick response to customers requirement:Our sales team will reply within 24 hours for any quation from our customers.



6. Prefect after-sales service:Our QE department can provide very good service.



Brief company profle:



This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC SAA safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

The most important is our pricing and service is much better than other adapter suppliers.

We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

We have some contracted forwarders to ship the adapters with lower shipping cost.

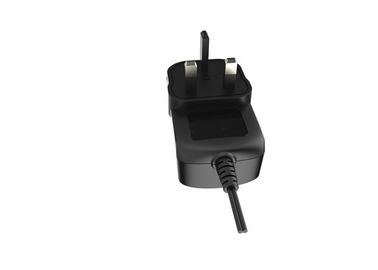

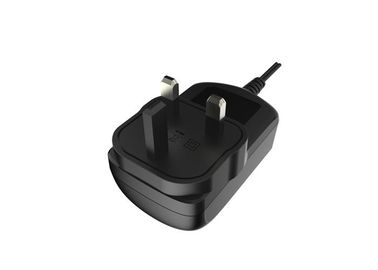

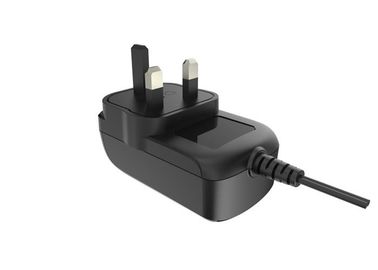

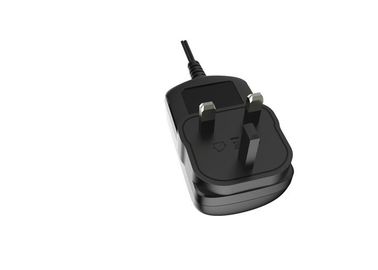

12V 2A UK Plug in universal ac dc wall mount power adaper picture:



24W UK Plug Black 2A 12 Volt AC Switching Power Supply Universal AC DC Wall Mount 0
