Product Details:
Payment & Shipping Terms:
|
| Color: | White / Black | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Connetion: | Wall Mount Plug In | Material: | PVC |
| AC Plug: | Universal | Package: | White Box + Carbon |
| Product Name: | Ac Dc Wall Mount Adapter | Place Of Origin: | Shenzhen China |
| Highlight: | power switching supply,power supply switching,2A 12 Volt AC Switching Power Supply |
||
24W UK plug Black ac - dc switching power adapter 12V 2A with CE KA SAA approvals
12V 2A UK AC DC universal wall mount power adapter:
Brief description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white / black
Safety licences:ETL FCC CE GS EMC CCC PSE KA SAA
Connection:plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing:We can produe most of the materials, the cost is better than others.
2. High quality standard:We strictly follow the ISO and other quality standards.
3. Better lead time:We have 10 production lines and our lead time can be within 15 days.
4. Professional R / D team:We have over 20 R/D to design the new adaptes to match the market needs.
5. Quick response to customer’s requirement:Our sales team will reply within 24 hours for any quation from our customers.
6. Prefect after-sales service:Our QE department can provide very good service.
Brief company profle:
This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC SAA safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
We have some contracted forwarders to ship the adapters with lower shipping cost.

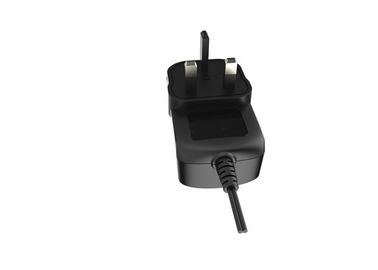

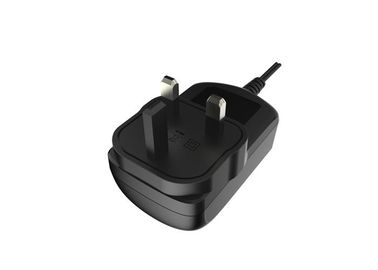

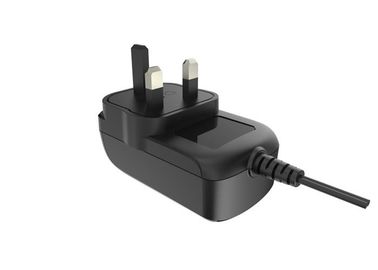

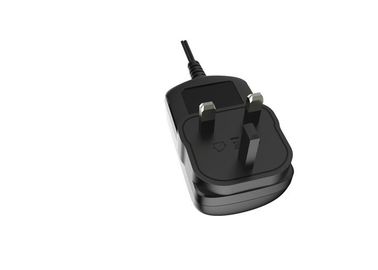

12V 2A UK Plug in universal ac dc wall mount power adaper picture:
