3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input

3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input

    • 3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input
    • 3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input
    • 3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input
    • 3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input
  • 3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input

    Product Details:

    Place of Origin: Shenzhen Guangdong China
    Brand Name: REEU
    Certification: ETL/CE/GS/PSE/KA/CCC/FCC
    Model Number: 36D

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: white box+carbon
    Delivery Time: 15-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 500,000pec per month
    Contact Now
    Detailed Product Description
    Safety Licences: UL/CUL/CE/GE/PSE/CCC/FCC/KA/EMI Output: 24v1.5a / 12v3a
    Burn-in: More Than 4 Hours Warranty: 2 Years
    Power Watt: 36w Max Product Name: Desk-top Ac Adapter
    Input: 90-264V Material: PVC
    High Light:

    universal travel charger

    ,

    multi country travel adaptor

    12v 3a desktop universal ac power adapter with ETL/FCC/CE/GS/PSE/CCC/KA approvals



    36W universal desktop power supply



    Brief description:



    Product name:desktop switching power supply

    Input voltage:90-264VAC

    Input frequency:47-63Hz

    Output voltage:24V

    Output current:1.5A

    Colour:black

    Connection:plug in

    Safety approval:ETL CE PSE CCC

    Warranty:2 years

    AC cable:1.5M





    Specification:





    Electrical Hi-pot Test: 3000VAC
    Burn-In Test: 100% full load 2-4 hours
    Efficiency: 86%
    MTBF: 50000 hours
    Iusulation: Yes
    AC Input voltage range: 90-264VAC
    Input frequency: 47-63Hz
    Input current: 0.8A max
    Inrush current:
    DC Output Voltage range: 24VDC
    Current range: 1.5A
    Ripple: 150mVp-p max
    Safety Approvals ETL/FCC/CE/GS/KA/PSE/CCC/EMC
    Storage Temperature -20 degrees to 85 degrees
    Normal Working Temperature 0 degree to 40 degrees





    Feature:



    1. High efficiency:energy star class 6

    2. Low ripple and noise

    3. more than 4 hours 100% full load burn-in

    4. Warranty 2 years

    5. MTBF 50000 hours

    6. Efficiency:88%



    Application:



    Video equipment TV box,CCTV,router, set-top-box
    Audio equipment speaker,microphone,recording device
    Communication device smart phone, telephone,notebook,tablet PC
    Household appliance air purifier,water purifier,solar panel
    Medical equipment cosmetic machine,glucose meter
    Others PS4,segway,game player,electronic toys





    Competitive advantage:



    Quick response to customer's requested within 24 hours
    ISO9001 and ISO14001 are our quality standard management system
    We produce mostof the materials, the pricing is much better than othrs
    We have 10 prodection lines to make sure the lead time is 15 days only
    Worldwide safety approvals are available
    0.1% back up of the total order quantity is a must
    We provide max 5 pcs free samples to customer for testing







    Quick company profile:



    This adapter has pass ETL/CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

    The most important is our pricing and service is much better than other adapter suppliers.

    We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.

    We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

    Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

    Our plant has over 10,000 square meters working place and around 500 employees to service over 500 customers from around 80 countries in the world.

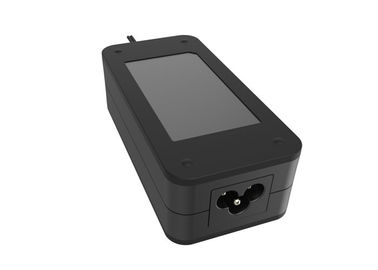

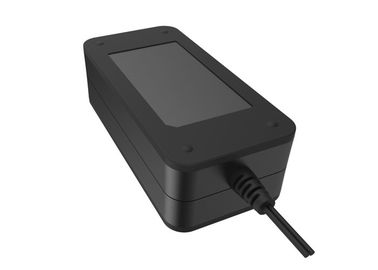

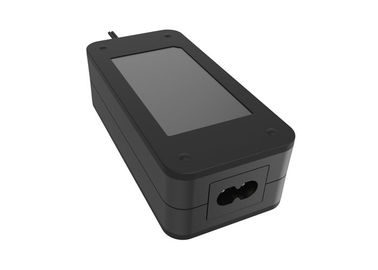

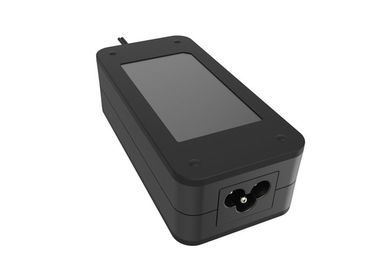

    24V 1.5A AC switching power adapter picture view:

    3A Desktop Universal Travel Adapter 12V AC 36W With 90 - 264V Input 0
