36 W 12 Volt Desktop Switching Power Adapter With Universal Safety Cerificates

Certification
Good quality Universal AC Power Adapter for sales
Good quality Universal AC Power Adapter for sales
We have over 8 years cooperation with RUIYU Tech which is one of the best adapters suppliers we can BELIEVE. MAY International from USA

—— TRVOR JAMES

At RUIYU Tech, you can find what you need and what you really want to buy.Quality and Pricing are much better! Mikro Tech from EU

—— Mark Harding

I'm Online Chat Now

36 W 12 Volt Desktop Switching Power Adapter With Universal Safety Cerificates

China 36 W 12 Volt Desktop Switching Power Adapter With Universal Safety Cerificates supplier

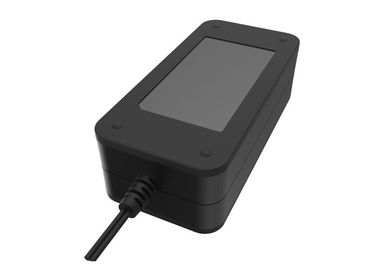

Large Image :  36 W 12 Volt Desktop Switching Power Adapter With Universal Safety Cerificates

Product Details:

Place of Origin: Shenzhen Guangdong China
Brand Name: REEU
Certification: UL/cUL/CE/GS/PSE/KA/CCC/FCC
Model Number: 36D

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: negotition
Packaging Details: white box+carbon
Delivery Time: 15-20 days
Payment Terms: T/T, L/C
Supply Ability: 500,000pec per month
Detailed Product Description
Product Name: Desktop Power Adapter Place Of Origin: Shenzhen China
Burn-in: More Than 4 Hours Warranty: 2 Years
Material: PVC Endure Heat Above 110 Degrees AC Cable: 1.2m 1.5m 1.8m
Category: Desktop Adapter Output: 12v5a 24v2a
Package: White Box MTBF: 50K Hours

Output 36 watts 12Volts desktop switching power adapter with universal safety cerificates


36W desktop switching power supply


Brief Description:
Input voltage:90 - 264VAC
Input frequency:47--63Hz
Output:12V 3A
Colour:black
AC cord:US,EU,UK,CCC,PSE,KA
Category:laytop adapter
DC cable:1.5m standard
AC cable:1.5m standard


Key Specification:



Input Rated input voltage 120-240VAC
Input voltage range 90-264VAC
Rated frequency 50/60 Hz
Input frequency range 47-63Hz
Input AC current 2A max
Inrush current 20A max
Output Rated output voltage 12VDC
Rated output current 3A
Rated power 36W Max
Ripple and noise 120mVp--p
Standby power consumption 0.3W max
Turn-on 2S
Hold-up 5mS
OVP yes
OCP yes
Short Circuit prodection yes
Reliability Hi-pot 3000 VAC
Burn-In 4hours
Leakage current 0.25mA
EMI standards meet
RoHS compliant meet
MTBF 50000 hours
Drop test yes
Insulation resistance yes
Environmental Operating temperature 0 to 40 degrees
Operating humidity 5% to 90%
Storge temperature -20 degrees to 85 degrees
Storge humidity -% to 90%
Safety approvals UL/CUL/FCC/CE/GS/CCC/PSE/KA
Warranty 2 years


Features:

1. High efficiency:>88% at least
2. Safety licences:main approvals of the world are available
3. Burn -in:100% full load
4. MTBF:50000 hours

Application:

1. Notebook and desktop PC
2. LED screen
3. POS Ssystem
3. other IT equipment



Competitive advantage:



1. we have produced most of the raw materials at our own plant, we control well the materials cost,so our pricing is much better than others.



2. Quality is our life.we always focus on the quality and strictly fellow up the high quality standards as ISO90001.



3. We have 10 production lines and 400 first line works, so our lead time is within 15 days after we received the confirmed order.



4. Our professional R / D team can desigh high quality and more stable adapter.



5. Our oversea sales can quickly handle any requested within 24 hours.



6. Our QE staffs offer very good after sales service.



Quick review of our company:



The adapter has pass UL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.



The most important is our pricing and service is much better than other adapter suppliers.



We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.


Widely usage of the 12V 3A desk - top universal power adapter:



36 W 12 Volt Desktop Switching Power Adapter With Universal Safety Cerificates
