18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac
  • 18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac
  • 18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac
  • 18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac
  • 18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac

18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS/KA/PSE/CCC
Model Number 24VA
Product Details
Product Name:
Ac Power Adapter
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Input Voltage:
90-264V
Output Power:
24W
Color:
Black
AC Plug:
AU
High Light:

ac dc charger adapter

,

universal ac dc power adapter

,

us 2 pin wall mount power adapter

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

18W 24W WHITE US 2PIN wall mount power adapter with input 90 - 264Vac



US 2PIN wall mount power adapter


Brief Description:


The universal ac dc power adapter is a single range of the input voltage 90-264Vac and the output power is 24W, the output current can be changed according to the needs, but max is 2000ma.the adapter has OCP OCP SCP function to protect the adapter during working.the adapter has passed universal safety approvals and sold to around 50 countries in the world.



Main parameters:
Input voltage:90 - 264VACer adapter
Input frequency:47 - 63Hz
Output voltage:12 - 24VDC
Output current:1500 - 2000MA
Colour:white - black
Safety licences:ETL FCC CE GS PSE CCC AU
Connection:US plug in

Warranty:2 years


Specification:


Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12 - 24VDC
Current range: 1500 - 2000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees


Features:


1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OCP,SCP,OVP
5. Free samples are available for the function testing



Competitive advantage:



we have 10 production lines and the lead time is 15 days only
Our adapters passed all safety licences, and satisfy all customers needs
we have our own adapters, but OEM is highly welcome
We have long time partnership vendors, the pricing is much better
Our oversea sales will handle all issues from customers within 24 hours.

Our after sales service is effective and friendly.



Who we are:



We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

Our plant has over 10,000 square meters working area and has over 500 employees,our customers come from around 80 countries in the world.


 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys

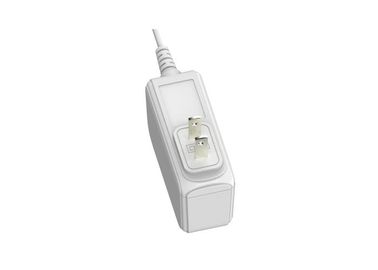

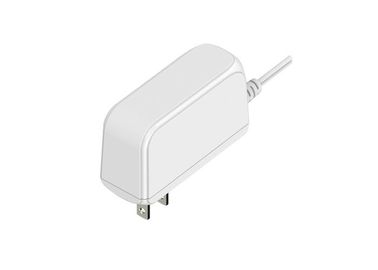

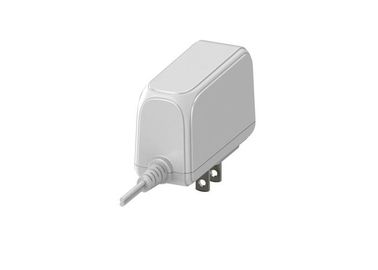

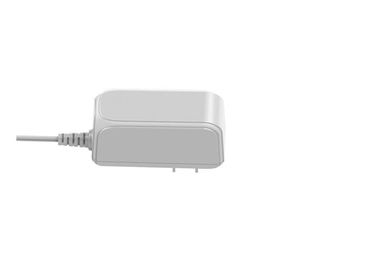

 18W US plug wall mount adaper picture:

 18W / 24W White US 2 Pin Wall Mount Power Adapter With Input 90 - 264Vac 0
