Payment & Shipping Terms:
|Product Name:||Ac Wall Mount Adapter||Efficiency:||Energy Star Class 6|
|Burn-in:||More Than 4 Hours||Warranty:||2 Years|
|Place Of Origin:||Shenzhen China||Certificates:||CE GS LVD EMC|
|ACplug:||EU UK||Package:||White Box + Carbon|
|DC Cable:||1.5 M Standard||Materials:||ABS + PC|
18W white wall mount EU plug high efficiency switching power supply with CE GS LVD
12V 2A EU 2PIN wall mount adapter below:
1. Input voltage:90 - 264VAC
2. Input frequency:47 - 63Hz
3. Output voltage:12VDC 24VDC
4. Output current:0.75A 1A 1.5A
5. Colour:white black
6. Safety licences:UL cUL FCC CE GS LVD PSE KC CCC SAA
7. Connection:plug in
8. Package:white box or PE bag
|Burn-In Test:||100% full load 2-4hours|
|AC Input||voltage range:||90-264VAC|
|Leakage current:||0.25mA max at 240VAC input|
|DC Output||Voltage range:||12VDC - 24vdc|
|Current range:||750ma - 1500MA|
|Safety Approvals||UL CUL FCC CE GS PSE CCC KA SAA|
|Storage Temperature||-20 degrees to 85 degrees|
|Normal Working Temperature||0 degree to 40 degrees|
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
5. Customization is high welcome
|Video equipemnt||TV box CCTV, router, set-top-box|
|Audio equipment||Speaker, microphone,recording device|
|Communication device||smart phone nootbook,tablet PC|
|Household appliance||air purifier, water purifier,solar panel|
|Medical equipment||cosmetic machine,glucose meter|
|others||PS4,segway,game player, electronic toys|
1. This adapter has pass UL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world.
2. The most important is our pricing and service is much better than other adapter suppliers.
3. Our lead time is 15-25 days after recevied the PO.
4. Our R / D team can design the new adapter according to customer's needs.
5 Our QC / QA staffs check and test each adapter before shipping.
6. We always focus on the quality and servise that cause we can provide good quality adapter and prefect after sales servise.
7. We can offer 0.1% of the total otder quantity adapters to replace the failed adapters during the gearantee period.

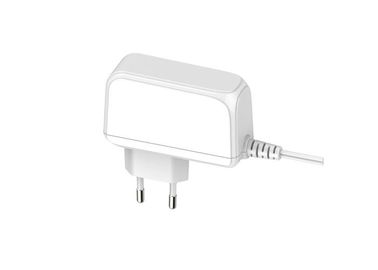

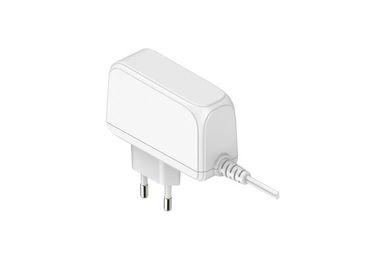

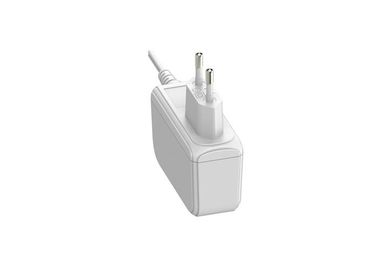

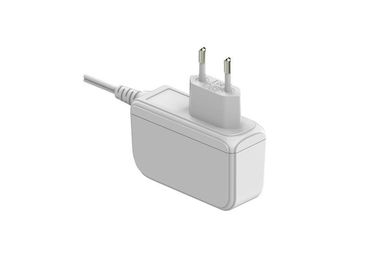

12V - 24V 18W EU plug wall mount adaper picture:
