24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter

China 24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter supplier
24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter supplier 24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter supplier 24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter supplier 24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter supplier

Large Image :  24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter

Product Details:

Place of Origin: Shenzhen Guangdong China
Brand Name: REEU
Certification: UL/cUL/CE/GS/PSE/KA/CCC/FCC/EMI
Model Number: 12AV

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: PE bag+carbon/white box+carbon
Delivery Time: 15-20 days after confirmed the order
Payment Terms: T/T, L/C
Supply Ability: 1,000,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Ac Adapter Burn In: 100% Full Load At 115Vac For 4 Hours
Efficiency: 87% Category: Wall Mount Adapter
Color: White AC Plug: EU
Input Voltage: 100-240Vac Output: 24V 0.5A
Material: PVC Place Of Origin: Shenzhen China

24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter



24V 500ma AC switching wall mount power adapter





Brief description:



AC - DC 24V 500MA power adapter

Input voltage:90 - 264VAC

Input frequency:47 - 63Hz

Output voltage:24VDC

Output current:500MA

Colour:white

Connection:plug in

Safety approval:CE

Warranty:2 years



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 2-4 hours
Efficiency: >83%
MTBF: 50000 hours
Iusulation: yes
AC Input voltage range: 90-264VAC
Input frequency: 47-64Hz
Input current:
Inrush current:
DC Output Voltage range: 24VDC
Current range: 500MA
Ripple: 120mVp-p
Safety Approvals UL/CUL/FCC/CE/GS/KA/PSE/CCC/EMC
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees





Feature:



1. High efficiency:energy star class 6

2. Low ripple and noise

3. more than 4 hours 100% full load burn-in

4. Warranty 2 years

5. MTBF 50000 hours



Application:



1. Air purifier water purifier LCD screen

2. POS system

3. Electronis toys and cosmetic machine

4. Set-top-box, router



Competitive advantage:



Quick response to customer's requested within 24 hours
High quality standard as ISO9001 and ISO14001
Competitive pricing
Good lead time is 15  - 20 days after confirmed the order
Worldwide safety approvals are available
0.1% back up of total order quantity
Free samples are provied 5pcs max





Why you can trust us?



1. This adapter has pass UL / CE / GS / PSE / EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.



2. The most important is our pricing and service are much better than other adapter suppliers.



3.We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.



4. We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.



5. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have       more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

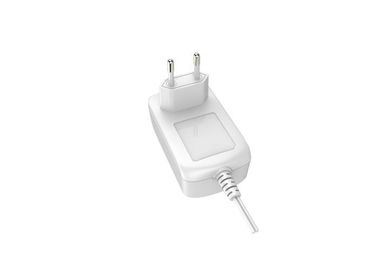

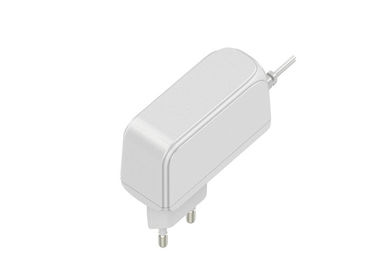

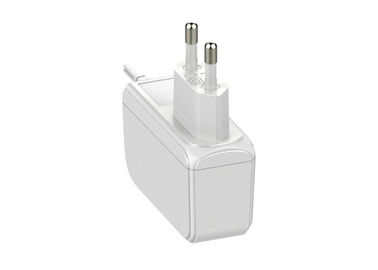

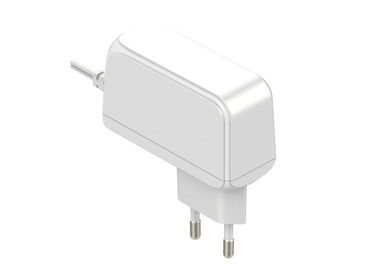

24V 0.5A AC to DC universal wall mount power adapter:

24V 500MA AC Switching Power Supply 90 - 264VAC AC Switching Wall Mount Adapter
