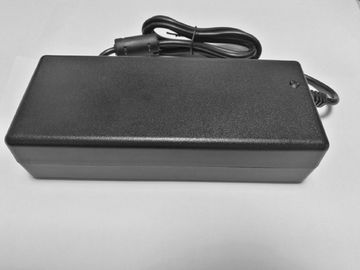

12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter

China 12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter supplier
12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter supplier 12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter supplier 12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter supplier

Large Image :  12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter

Product Details:

Place of Origin: Shenzhen Guangdong China
Brand Name: reeu
Certification: UL/cUL/CE/GS/PSE/KA/CCC/FCC
Model Number: 120A

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: negotition
Packaging Details: white box+carbon
Delivery Time: 15-20 days
Payment Terms: T/T, L/C
Supply Ability: 500,000pec per month
Contact Now
Detailed Product Description
Safety Licences: UL/CUL/CE/GE/PSE/CCC/FCC/KA/EMI High Efficiency: >88%
Burn-in: More Than 4 Hours Warranty: 2 Years
Material: PVC Endure Heat Above 110 Degrees Product Name: Desk Top Power Adapter
AC Pin: US EU UK JP CN AU AC Cable: 1.2m 15m 1.8m
DC Cable: 1.5m DC Plug: 5.5 X 2.1mm

12V 10A black universal ac - dc desk top power adapter with UL CUL FCC CE PSE apprvals

Brief description:



produce name:desk top ac adapter:
Input voltage:90-264VAC
Input frequency:47--63Hz
Output:12V 10A, 12V 9.5A,24V5A
Colour:black
AC pin:US,EU,UK,CN,JP

AC cable:1.2m 1.5m 1.8m
Certificates:UL CUL CE GS RoHs CCC PSE EMC




Specification:



Input Rated input voltage 120-240VAC
Input voltage range 90-264VAC
Rated frequency 50/60 Hz
Input frequency range 47-63Hz
Input AC current 3A max
Inrush current 20A max
Output Rated output voltage 12VDC 24VDC
Rated output current 5A 9.5A 10A
Rated power 120W Max
Ripple and noise 120mVp--p
Standby power consumption 0.3W max
Turn-on 3S
Hold-up 5mS
OVP yes
OCP yes
Short Circuit prodection yes
Reliability Hi-pot 3000 VAC
Burn-In 4hours
Leakage current 0.25mA
EMI standards meet
RoHS compliant meet
MTBF 50000 hours
Drop test yes
Insulation resistance yes
Environmental Operating temperature 0 to 40 degrees
Operating humidity 5% to 90%
Storge temperature -20 degrees to 85 degrees
Storge humidity -% to 90%
Safety approvals UL/CUL/FCC/CE/GS/CCC/PSE/KA
Warranty 2 years


Features:

1. High efficiency:>88% at least
2. Safety licences:main approvals of the world are available
3. Burn -in:100% full load
4. MTBF:50000 hours

Application:


Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys




Competitive advantages:





1. Our pricing is much better than others.



2. We have more than QC/QA staffs to make sure each adapter to meet our high quality standard ISO9001



3. We have 10 production lines to make sure 15-25 days lead time and our production capacity is morn than 100,000 pcs per month.



4. Our R/D team has t least more than 10 years in adapter design.



5. We have oversea department to handle customer's requirement within 24 hours.



6. Prefect after-sales service.



Widely usage of the 12V10A desk-top universal power adapter:
12V 10A Black Desktop Power Adapter AC - DC Desk - Top Universal Power Adapter
