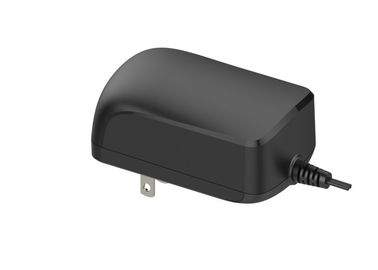

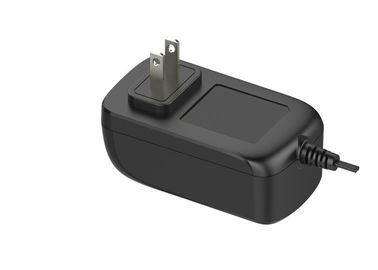

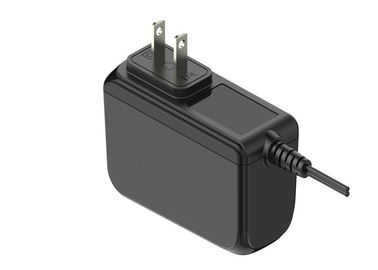

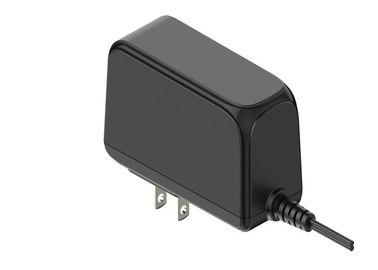

US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong
  • US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong
  • US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong
  • US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong
  • US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong

US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS/KA/PSE/CCC
Model Number 36VA-V
Product Details
Color:
White/black
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
MTBF:
50K Hours
Material:
PVC
Package:
White Box + Carbon
Input:
100-240V
Output Watt:
36W
Product Name:
Ac Wall Mount Adapter
High Light:

ac dc charger adapter

,

universal ac dc power adapter

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong



12V 3A US 2PIN wall mount adapter
Brief Description:

Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:3000MA
Colour:white/black
Safety licences:ETL / FCC / CE
Connection:US



Specification:


Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 3000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees


Features:


1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP


Competitive advantage:

1. We produced most of the materials by ourself, we can manage the cost very well.

2. High quality standard as ISO9001 and ISO140001

3. Better lead time is around 15 days after confirmed the PO

4. Professional R/D team

5. Quick response to customers requirement within 24 hours through our oversea sales

6. Prefect after-sales service

7.This adapter has pass ETL CE GS PSE EMC KA CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

8. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.

9. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

10. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.


 Application:


Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys




12V 3A US plug wall mount adapter
US 2 Pin AC DC Adapter 12V 3A 36W Black / White Wall Mount 2 Prong 0
