AC DC Power Adapter
>
|
| Place of Origin | Shenzhen Guangdong China |
| Brand Name | REEU |
| Certification | ETL/CE/GS/CCC/PSE/KA/EMI/FCC |
| Model Number | 18AV-E/18AV-U |
white 12V 1.5A US / EU / UK plug AC wall mount power adapter for set - top - box application
18W 12V 1.5A wall mount power supply:
Brief Description:
AC - DC 12V 1.5A power adapter
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:1500MA
Colour:Black/white
Connection:plug in
Safety approval:ETL / FCC / CE / GS / PSE / CCC / EMC
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Insulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Leakage current: | 0.25mA | |
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 1.5-3.0A | |
| Ripple: | 150vMp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R/D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
7. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. The most important is our pricing is much better than other adapter suppliers.
9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
10. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
11. Our monthly production capacity is 50,000 pcs adapters and we have fine production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

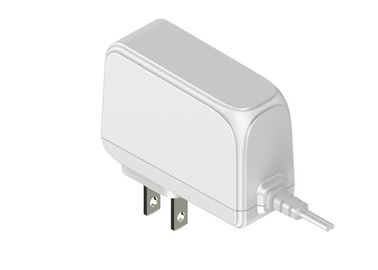

12V 1.5A US plug wall mount adapter picture view:
