90 - 264V 12V 6A AC DC Desktop Power Adapter 72W Universal For Fast Charging

90 - 264V 12V 6A AC DC Desktop Power Adapter 72W Universal For Fast Charging

  • 90 - 264V 12V 6A  AC DC Desktop Power Adapter 72W Universal For Fast Charging
  • 90 - 264V 12V 6A  AC DC Desktop Power Adapter 72W Universal For Fast Charging
  • 90 - 264V 12V 6A  AC DC Desktop Power Adapter 72W Universal For Fast Charging
90 - 264V 12V 6A  AC DC Desktop Power Adapter 72W Universal For Fast Charging
Product Details:
Place of Origin: Shenzhen Guangdong China
Brand Name: REEU
Certification: ETL/CE/GS/PSE/KA/CCC/FCC
Model Number: 120A
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: negotition
Packaging Details: white box+carbon
Delivery Time: 15-20 days
Payment Terms: T/T, L/C
Supply Ability: 500,000pec per month
Contact Now
Detailed Product Description
Safety Licences: ETL/CE/GE/PSE/CCC/FCC/KA/EMI High Efficiency: >88%
Burn-in: More Than 4 Hours Warranty: 2 Years
Power: 72W Max Output: 12V6A/24V2.5A
AC Cord: 1.2m 1.5m 1.8m DC Cord: 1.5m Standard
High Light:

ac dc charger adapter

,

universal power adapter travel

90 - 264V 12V 6A AC DC desktop power adapter with ETL / FCC / CE / PSE approvals

Description:


Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output:12V 6A
Colour:black
AC plug:US UL EU CN JP AU

AC cable:1.5m standard

Specification:





Input Rated input voltage 120-240VAC
Input voltage range 90-264VAC
Rated frequency 50/60 Hz
Input frequency range 47-63Hz
Input AC current 2A max
Inrush current 20A max
Output Rated output voltage 12VDC
Rated output current 6A
Rated power 72W Max
Ripple and noise 120mVp--p
Standby power consumption 0.3W max
Turn-on 2S
Hold-up 5mS
OVP yes
OCP yes
Short Circuit prodection yes
Reliability Hi-pot 3000 VAC
Burn-In 4hours
Leakage current 0.25mA
EMI standards meet
RoHS compliant meet
MTBF 50000 hours
Drop test yes
Insulation resistance yes
Environmental Operating temperature 0 to 40 degrees
Operating humidity 5% to 90%
Storge temperature -20 degrees to 85 degrees
Storge humidity -% to 90%
Safety approvals ETL/FCC/CE/GS/CCC/PSE/KA
Warranty 2 years


Features:

1. High efficiency:>88% at least
2. Safety licences:main approvals of the world are available
3. Burn in:100% full load
4. MTBF:50000 hours
5. All protections as SCP OVP OCP are available


Application:


1. Audio equipment:speakers, recording machine
2. Video equipment:TV box,cctv cameras computers
3. Household applicaces:air purifier,water purifier osram led
4. Communication equipment:Mobile phone, notebook, tablet PC



Competitive advantage:



Quick response to customer's requested
High quality standard as ISO9001 and ISO14001
Competitive pricing
Good lead time:15 days after confirmed the order
Worldwide safety approvals are available
0.1% back up of the total order quantities
Free 3 pcs samples are provided to customers for testing





Why you can trust us?



1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.



2. The most important is our pricing and service is much better than other adapter suppliers.



3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.



4. We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.



5. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

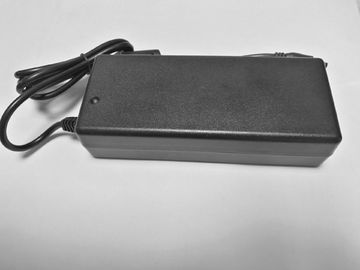

12V 6A AC - DC universal desktop power adapter:




90 - 264V 12V 6A  AC DC Desktop Power Adapter 72W Universal For Fast Charging 0
