2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma

2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma

  • 2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma
  • 2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma
  • 2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma
  • 2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma
2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma
Product Details:
Place of Origin: Shenzhen guangdong China
Brand Name: REEU
Certification: ETL/FCC/EMI/CE/GS/CCC
Model Number: 24VA
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotition
Packaging Details: white box+carbon
Delivery Time: 15-20 days after confirmed the order
Payment Terms: T/T, L/C
Supply Ability: 800,000pcs per month
Contact Now
Detailed Product Description
Color: Black Efficiency: 88%
Burn-in: More Than 4 Hours Warranty: 2 Years
DC Cable: 1.5m Certificate: ETL FCC
Product Name: Ac Dc Adapter Package: White Ox + Carbon
Materials: PVC Place Of Origin: China
High Light:

power switching supply

,

power supply switching

2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma



12V 2A AC switching power adapter



Product Details:



Input voltage:90 - 264VAC

Input frequency:47 - 63Hz

Output voltage:12VDC

Output current:2000MA

Colour:black

Safety licences:ETL FCC

Connection:plug in



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 2000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees



Features



1. High efficiency:>83%

2. Stand by power consumption:0.1w(max)

3. Low ripple&noise:150mVp-p(max)

4. Four protection available:OLP,OCP,SCP,OVP



 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1. We have own materials production line, we manage the cost very well.



2. High quality standard



3. Better lead time is within 18 days after confirmed the order.



4. Professional R / D team and skilled management



5. Quick response to customers requirement within 24 hours by our oversea sales



6. Prefect after-sales service by QE



7. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.



8. The most important is our pricing and service is much better than other adapter suppliers.



9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.



10. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.



11. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.



12. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

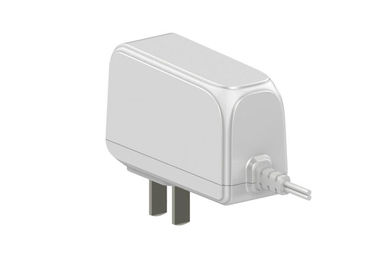

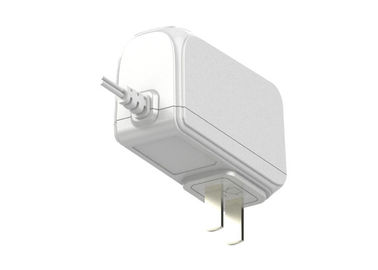

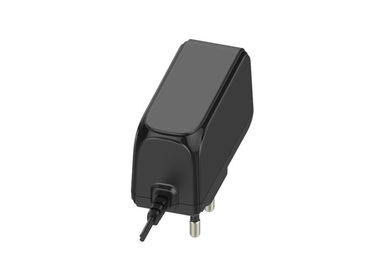

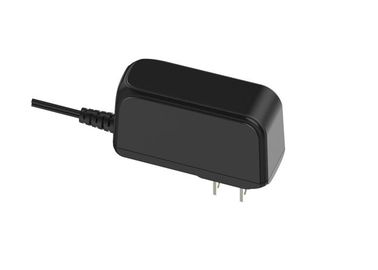

12V 2A universal ac dc wall mount power adaper picture:



2A AC Black Switching Power Supply Universal 12v 47 - 63Hz 2000ma 0
