|Place of Origin:||Shenzhen Guangdong China|
|Model Number:||24D 36D 60D|
|Minimum Order Quantity:||500pcs|
|Packaging Details:||white box+carbon|
|Delivery Time:||15-20 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||500,000pec per month|
|Burn-in:||More Than 4 Hours||Warranty:||2 Years|
|Product Name:||Desk-top Switching Power Supply||DC Plug:||5.0x2.5/5.5x2.1|
|AC Cable:||1.5m Standard||Package:||White Box + Carbon|
|Output Current:||12V2A 12V3A 12V5A||Material:||PVC|
desktop computer power supply,
laptop power supply

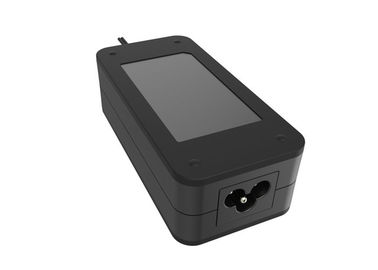

High efficiency 24W 36W 60W desktop universal AC swithing power supply
The switching power supply is single output level and has designed highly reliable and meet international safety and electromagnetic compatibility requirements.And the key parameters as below:
Output:12V 2A,12V 3A 12V 5A
AC cord:1.2m 1.5m 1.8m
|Input||Rated input voltage||100-240Vac|
|Input voltage range||90-264Vac|
|Rated frequency||50-60 Hz|
|Input frequency range||47-63hz|
|Input AC current||2A|
|Inrush current||20A Max|
|Output||Rated output voltage||12Vdc|
|Rated output current||2000Ma 3000Ma 5000Ma|
|Rated power||60W Max|
|Ripple and noise||120mVp-p|
|Standby power consumption||0.1W Max|
|Short Circuit prodection||Yes|
|Burn-In||Full load at 115Vac for 4 hours|
|EMI standards||FCC part 15|
|Environmental||Operating temperature||0-40 degrees|
|Storge temperature||-20-80 degrees|
|Safety approvals||ETL FCC CE GS KA CCC SAA PSE|
1. High efficiency:>83% at least
2. Safety licences:main approvals of the world are available
3. Burn -in:100% full load
4. MTBF:50000 hours
5. EFT:Follow IEC-61000-4-4
6. ESD:The power is capable to withstand ESD test voltage at any pointaround the enclosure.
|Video equipemnt||TV box CCTV, router, set-top-box|
|Audio equipment||Speaker, microphone,recording device|
|Communication device||smart phone nootbook,tablet PC|
|Household appliance||air purifier, water purifier,solar panel|
|Medical equipment||cosmetic machine,glucose meter|
|others||PS4,segway,game player, electronic toys|
1. 2pcs free samples are available, we are free of shipping cost by UPS Fedex.
2. High quality standard requested,we strictly follow up the quality management system as ISO9001.
3. We have more than 400 first line works and 10 production lines that cause our lead time is 15 days after received the formal orders.
4. In order to settle any problem adapter, we have set up the QE department to focuson the after sales service.
5.Our customers come from worldwide, and our oversea sales team can quickly answer any question from customer within 24 hours.
Why you can trust us?
This adapter has pass ETL/CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.
AC DC universal power adapter
