Product Details:
Payment & Shipping Terms:
|
| Product Name: | Medical Adapter | Place Of Origin: | Shenzhen China |
|---|---|---|---|
| Input: | 100-240v | Output: | 12v1a |
| Color: | White / Black | Material: | PVC |
| MTBF: | 50000 Hours | Efficiency: | 88% |
| Safety: | IEC60601 | Package: | White Box + Carbon |
| Highlight: | medical power adapter,medical grade power supply |
||

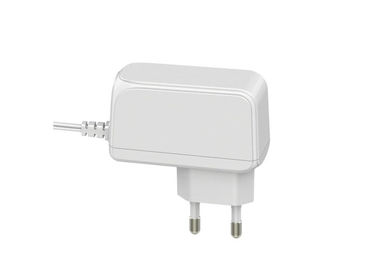

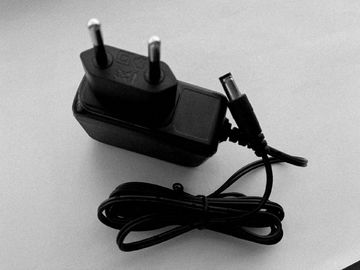

12V 1A white / black wall mount with US plug ac power adapter for medical device
Brief Description:
AC - DC 12V1A power adapter
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12V
Output current:1000Ma
Color:white black
Connection:plug in
Safety approval:IEC60601 CE
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 4 hours | |
| Efficiency: | 88% | |
| MTBF: | 50000 hours | |
| Insulation: | yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | See report | |
| Inrush current: | see report | |
| DC Output | Voltage range: | 12-24V |
| Current range: | 0.5-1.0A | |
| Ripple: | 150mVp-p | |
| Safety Approvals | CE60601 | |
| Storage Temperature | -20-85 DEGREES | |
| Normal Working Temperature | 0-40 DEGREES | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
1. Cosmetic machine
2. Glucose meter
3. Other medical device
Competitive advantage:
1. Most of the raw materials are produced by our own plant, we can better manage the cost.
2. High quality standard as ISO9001 and IEC60601
3. Our lead time is within 15 days after we received the formal order.
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours
6. Prefect after-sales service
7. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.
8. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
9. OEM and ODM are warm welcome.
12V 1A medical adapter
