Product Details:
Payment & Shipping Terms:
|
Product Name: | Desktop Switching Power Adapter | Color: | Black |
---|---|---|---|
Input: | 90- 264Vac | Power Watt: | 24w 36w 60w 120w |
Efficiency: | 88% | MTBF: | 50000hours |
Warranty: | 2 Years | Package: | White Box |
AC Inlet: | C8 C14 | AC Plug: | US EU UK CN JP KA |
Highlight: | medical grade power supply,medical power supply |

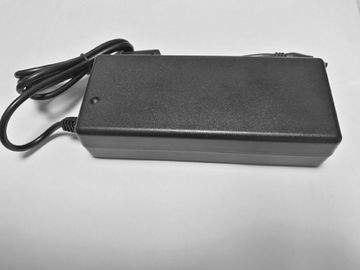

High medical quality universal desktop switching power supply with 12Volts 12 - 120watts
Description
Universal desktop ac adapter:
1. Input voltage:90-264VAC
2.Output power:12V 2A,12V 3A 12V 5A 24V 5A
3.High efficiency:>86%
4.Safety approvals:ETL FCC PSE CE GS KA CCC EMC
5.Category:Desktop
6.OCP OVP SCP
7. Burn in:4 hours 40+ / - 5 degrees at 240Vac, ON / OFF full load line
8. MTBF:50K hours of continuous operation at 20 degrees with max load and normal voltage.
Specification:
Power | 24W | 36W | 60W | 120W |
Input voltage | 100-240Vac | |||
Output voltage | 12-24Vdc | |||
Output current | 1-10A | |||
Categary | Desktop | |||
Aafety approvals | ETLFCC CE PSE CCC EMC | |||
Burn in test | 4 hours 100% full lead | |||
MTBF | 50000 hours | |||
Warranty | 2years | |||
AC/DC cable | 1.2m 1.5m 1.8m |
Feature:
worldwide safety licences are available |
High efficiency is a must to all adapters |
AC and DC cablecan be customized |
ripple and noise can be better managed |
Application:
Video equipemnt | TV box CCTV, router, set-top-box |
Audio equipment | Speaker, microphone,recording device |
Communication device | smart phone nootbook,tablet PC |
Household appliance | air purifier, water purifier,solar panel |
Medical equipment | cosmetic machine,glucose meter |
others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R/D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
Why can you trust us?
1. The adapters have pass ETL CE GS PSE EMC KA CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2.The most important is our pricing is much better than other adapter suppliers,due to we producemost of the materials, we can control the cost very well.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
4.We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
5.Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
6. We can provide same quantity adapters if there are some failed adapers within the warranty period
12V 2A 12V 3A 12V 5A 12V 9A desktop switching power supply
