| Color: | Black/white/customization | Connection: | Single USB Port/dual USB Port/ DC Wire |
|---|---|---|---|
| High Efficiency: | 78% | Approvals: | CE/GS/PSE/CCC |
| Product Name: | Car Charger | Package: | PE Bag + Carbon |
| High Light: | car charger adapter,universal usb car charger |
||

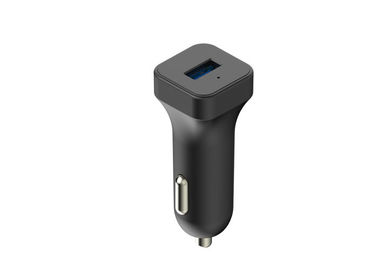

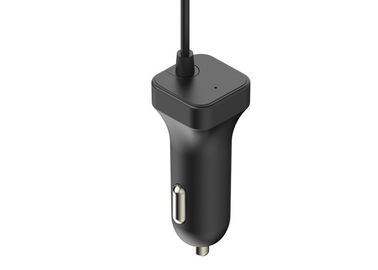

Tpye C single USB port 2.4A / 3A car charger EU UK KA PSE and CCC approvals
5V 2 .4A fast mobile phone charger
Brief Description:
DC-DC 5V 2.4A power adapter
Input voltage:10 - 28VDC
Input frequency:50 / 60 Hz
Output voltage:5VDC
Output current:2400MA
Colour:black / white
Connection:plug in
Safety approval: CE / GS / KA / PSE / CCC
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 2-4 hours | |
| Efficiency: | 80% | |
| MTBF: | 50000 hours | |
| Iusulation: | ||
| AC Input | voltage range: | 10 -24VDC |
| Input frequency: | 47-64Hz | |
| Input current: | 0.5A Max | |
| Inrush current: | ||
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 2.4A / 3A | |
| Ripple: | 250MVp-p | |
| Safety Approvals | CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. Good pricing:our pricing is better than others, due to we have our one raw matarials plant.
2. High quality standard as ISO9001 and ISO14001
3. Better lead time:we have around 400 first line workers to guarantee the lead time is 15 days only.
4. Professional R / D team:OEM ODM are much warm welcome.
5. Quick response to customer’s requirement
6. Prefect after - sales service
7. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 years experience and we have professional management in QC, purchasing and production.
8. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
9. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
5V 3A 5V 2.4A USB travel adapter
