Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | Output: | 12V1A |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power Watt: | 12w Max | Product Name: | Wall Mount Adapter |
| MTBF: | 50K Hours | Package: | White Box |
| High Light: | universal power adapter,universal ac charger,FCC Approvals Universal Electrical Adapter |
||
12V 1A universal AC power adapter with US 2pin ETL / FCC safety approvals
Brief Description:
Product name:wall mount switcing power supply
Input voltage:90 - 264VAC
Output voltage:12V
Output current:1000MA
Colour:black / white
Connection:plug in
Safety approval:ETL / CE / PSE / CCC
Warranty:2 years
Place of origin:Shenzhen China
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 12VDC |
| Current range: | 1000mA | |
| Ripple: | 120mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. More than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,nootbook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. Good pricing:most of the raw materials were produced by our own plant, the cost is lower than others.
2. High quality standard:we strictly fellow up the ISO9001 and ISO14001.
3. Better lead time:We have 10 production lines to guarantee the lead time is within 15 days.
4. Professional R / D team:Our engineers design the adapters according to the market trend.
5. Quick response to customer’s requirement:our sales must reply to customers within 24 hours;
6. Prefect after - sales service:our QE staffs to handle any problem from customers.
Quick company profile:
This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

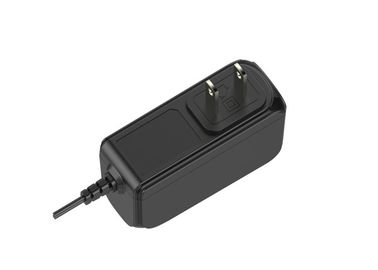

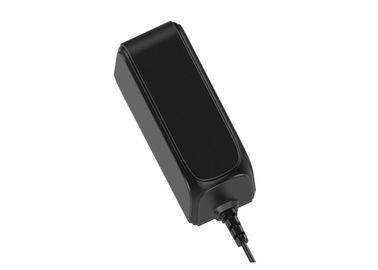

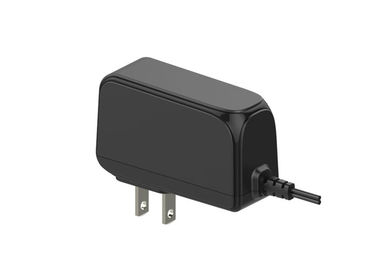

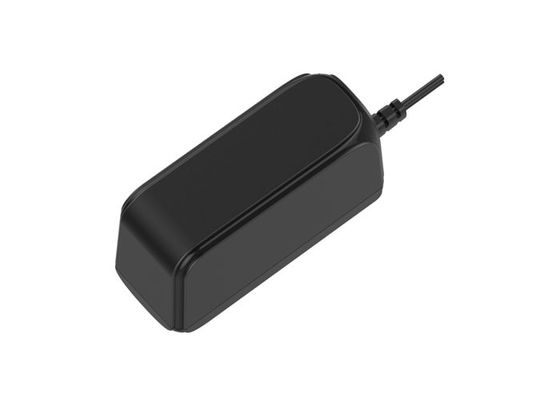

12V 1A universal AC - DC power adapter picture view:
