Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter
  • Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter
  • Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter
  • Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter
  • Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter

Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter

Place of Origin Shenzhen Guangdong China
Brand Name REEU
Certification CE/GS/PSE/KA/CCC/FCC
Model Number 36 AV 45AV
Product Details
Safety Licences:
CE/GE/PSE/CCC/FCC/KA/EMI
Output:
24v1.5a 24v1.9a
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Power Watt:
36w Max
Product Name:
Wall Mount Adapter
MTBF:
50K Hours
Package:
White Box
High Light:

wall power adapter

,

wall mount power supply

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days
Payment Terms
T/T, L/C
Supply Ability
500,000pec per month
Product Description

Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter



12v 3a wall mount power adapter



Brief Description:



Product name:wall mount switcing power supply



Input voltage:90 - 264VAC

Output voltage:12 - 24V

Output current:1500 - 3000MA

Colour:black / white

Connection:plug in

Safety approval: CE / PSE / CCC

Warranty:2 years

Place of origin:Shenzhen China



Specification:





Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4 hours
Efficiency: 86%
MTBF: 50000 hours
Iusulation: Yes
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A max
Inrush current:
DC Output Voltage range: 12 24VDC
Current range: 1500 - 3000mA
Ripple: 200mVp-p max
Safety Approvals FCC/CE/GS/KA/PSE/CCC/EMC
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees





Feature:



1. High efficiency:energy star class 6

2. Low ripple and noise

3. more than 4 hours 100% full load burn-in

4. Warranty 2 years

5. MTBF 50000 hours

6. Efficiency:88%



Application:



Video equipment TV box,CCTV,router, set-top-box
Audio equipment speaker,microphone,recording device
Communication device smart phone, telephone,nootbook,tablet PC
Household appliance air purifier,water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
Others PS4,segway,game player,electronic toys





Competitive advantage:



1. Good pricing

2. High quality standard

3. Better lead time

4. Professional R / D team

5. Quick response to customer’s requirement

6. Prefect after - sales service

7. This adapter has pass CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

8. The most important is our pricing and service are much better than other adapter suppliers.

9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.

10. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.

11. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

12. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

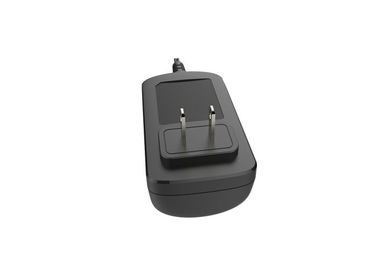

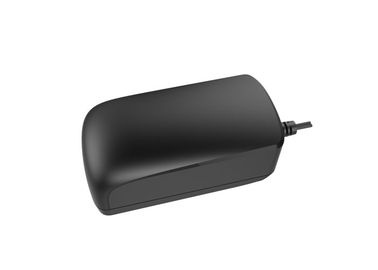

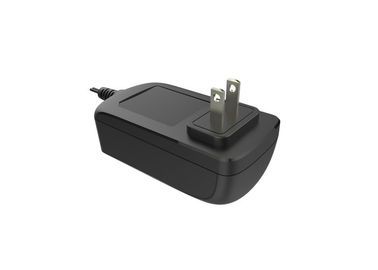

12V 3A 36W universal AC - DC power adapter picture view:

Black 100 - 240V Wall Mount Power Adapter 12V 3A Power Wall Adapter 0
