| Safety Licences: | CE/GE/PSE/CCC/FCC/KA/EMI | Output: | 24v1.5a 24v1.9a |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power Watt: | 45w Max | Product Name: | Wall Mount Adapter |
| MTBF: | 50K Hours | Package: | White Box |
| Highlight: | wall plug power adapter,wall mount power supply |
||
Universal 36W 45W wall mount power adapter with FCC CE GS PSE approvlas
Brief description:
Product name:wall mount switcing power supply
Input voltage:90-264VAC
Output voltage:24V
Output current:1500 - 1900MA
Colour:black / white
Connection:plug in
Safety approval:CE/PSE/CCC
Warranty:2 years
Place of origin:Shenzhen China
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 24VDC |
| Current range: | 1500 - 1900mA | |
| Ripple: | 200mVp-p max | |
| Safety Approvals | FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
1. LED screen, TV set,
2. AV equipment and other device
3. House appliance
4.Water purifier and ari purifier
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R/D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
Quick company profile:
This adapter has pass CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

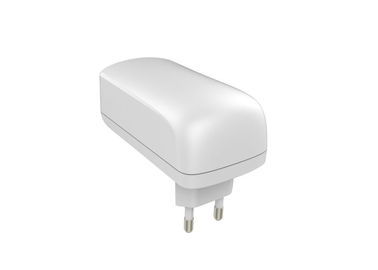

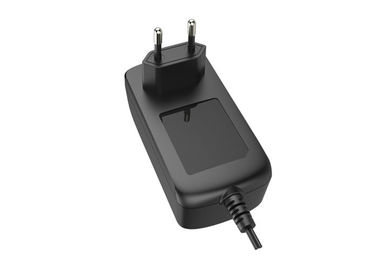

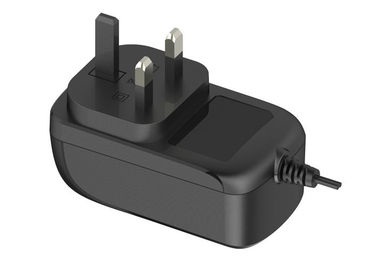

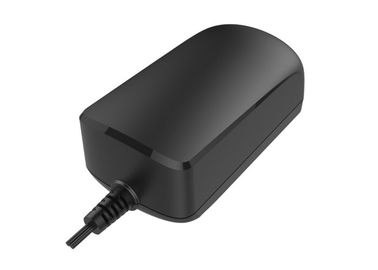

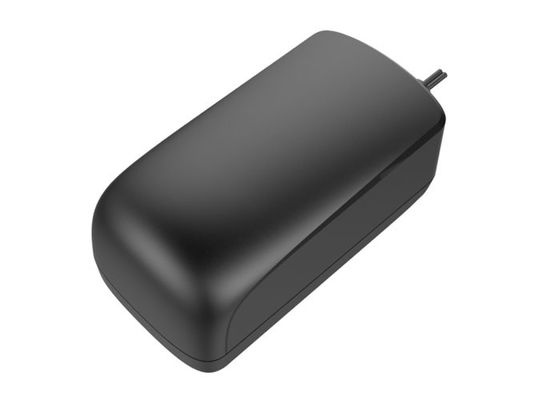

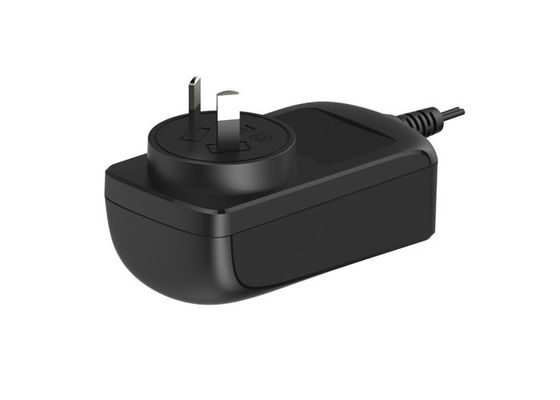

24V 36W 45W universal AC - DC power adapter picture view:
