Product Details:
Payment & Shipping Terms:
|
| Color: | White Black | Efficiency: | 86% |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| MTBF: | 50000 Hours | Materials: | ABS + PC |
| DC Cable: | 1.2m 1.5m 1.8m | DC Plug: | 5.5x2.1 / 5.5x2.5 |
| High Light: | wall power adapter,wall mount power supply |
||
90 - 264VAC 36W White AC wall mount power adapter with FCC CE GS approvals
Brief Description:
Input voltage:90-264VAC
Input frequency:47-63Hz
Output voltage:12VDC
Output current:3000MA
Colour:white black
Safety licences: FCC CE GS CCC PAE
Connection:US plug in
Specification:
| Power | 36W max | |||
| Input voltage | 90-264V | |||
| Output voltage | 12V | |||
| Output current | 3000MA | |||
| Categary | Plug in | |||
| safety approvals | FCC CE GS CCC PSE | |||
| Burn-in test | 4 Hours | |||
| MTBF | 50000 Hours | |||
| Warranty | 2 Years | |||
| Package | white box | |||
| AC pin | US plug | |||
| DC cable | 1.5 m standard | |||
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,nootbook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
| Quick response to customer's requested |
| High quality standard |
| Competitive pricing |
| Good lead time |
| Worldwide safety approvals are available |
| 0.1% back up |
| Free samples are provied 5pcs max |
Why can you trust us?
1. This adapter has pass CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service is much better than other adapter suppliers.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 100,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

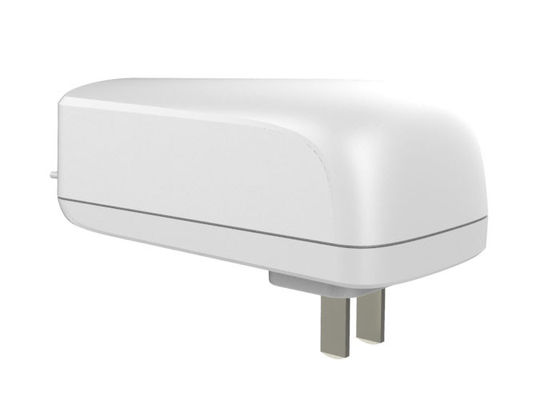

12V 3A US plug wall mount adaper picture:
