|Place of Origin:||Shenzhen guangdong China|
|Minimum Order Quantity:||500pcs|
|Packaging Details:||white box+carbon|
|Delivery Time:||15-20 days after confirmed the order|
|Payment Terms:||T/T, L/C|
|Supply Ability:||800,000pcs per month|
|Product Name:||Ac Dc Power Adapter||Input:||90-264 Vac|
|Output:||12V 3A 24V 1.5A||AC Plug:||US EU UK CN JP AU KA|
|Color:||Black White||Burn In:||100% Full Load At 115 VAC For 4 Hours|
|DC Cable:||1.2M 1.5M 1.8M||Package:||White Box + Carbon|
ac dc charger adapter,
universal ac dc power adapter,
36w us plug ac dc power adapter
36W US plug AC DC wall mount power adapter 12 - 24VAC black universal adapter
24V.15A 36W wall mount adapter
The wall mount adapter has a univeral input voltage 90 - 264VAC and frequency range 47 - 64 Hz, the output current max 2000Ma, the safety certificates is ETL FCC CE GS CCC PSE and EMC, the adapter was sold to over 50 countries in the world with high quality and more reliable.
Output voltage:12 - 24VDC
Output current:1500 - 3000MA
Safety licences:ETL FCC CE GS PSE CCC AU
Package:white box + carbon
|Burn-In Test:||100% full load 2-4hours|
|AC Input||voltage range:||90-264VAC|
|Leakage current:||0.25mA max at 240VAC input|
|DC Output||Voltage range:||12 - 24VDC|
|Current range:||1500 - 3000MA|
|Storage Temperature||-20 degrees to 85 degrees|
|Normal Working Temperature||0 degree to 40 degrees|
|Efficiency is more than 88% to meet energy star class VI|
|All protectios are a must as OVP OCP SCP|
|All materials meet RoHS standard|
|Low ripple and noise can match the standard|
1. We produce most of the raw materials and can better manage the cost, so our pricing is much better than others
2. We have international quality standard much as ISO9001 and ISO 14001 to guarantee each adapter good quality.
3. This adapter has pass ETL CE GS PSE EMC KA CCC SAA safety approvals and the quality is very good, also the efficiency can meet energy star requirements.
4. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 experience and we have professional management in QC, purchasing and production.
5. We are a adapter manufacturer and we have own product ,but we also offer OEM and ODM to customers who are from the worldwide.
6. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,that casue our lead time is lesss than 15 days after received the formal purchasing order.
7. we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing and shipping.
8. We have some contracted forwarder to provide very good shipping cost and fast shipping time to all customers.
|Video equipemnt||TV box CCTV, router, set-top-box|
|Audio equipment||Speaker, microphone,recording device|
|Communication device||smart phone nootbook,tablet PC|
|Household appliance||air purifier, water purifier,solar panel|
|Medical equipment||cosmetic machine,glucose meter|
|others||PS4,segway,game player, electronic toys|

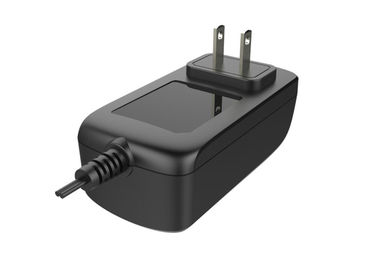

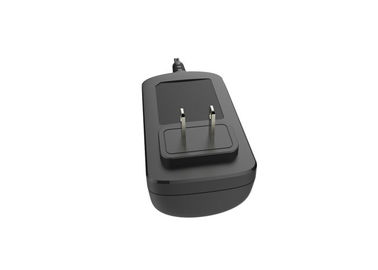

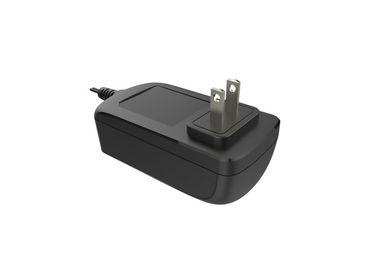

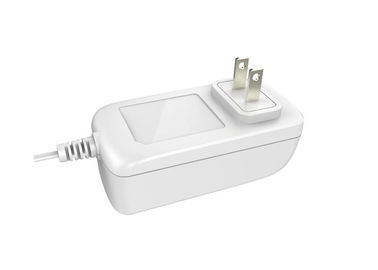

12V 24V 36W US plug wall mount adaper picture:
