Product Details:
Payment & Shipping Terms:
|
| Power Watt: | 36w Max | Output: | 12v3a 24v1.5a |
|---|---|---|---|
| Color: | Black White | Warranty: | 2 Years |
| MTBF: | 50000hours | Burn In: | 100% Full Load 4 Hours |
| AC Plug: | CN JP US EU UK KA AU | Efficiency: | Energy Star VI |
| Highlight: | power switching supply,power supply switching,SAA Approvals AC Switching Power Supply |
||

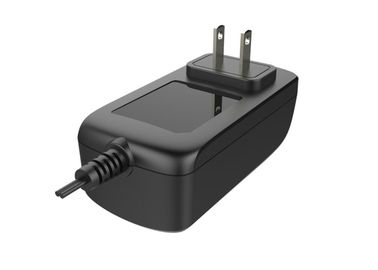

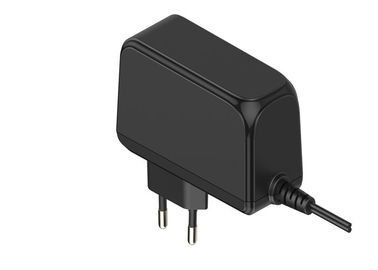

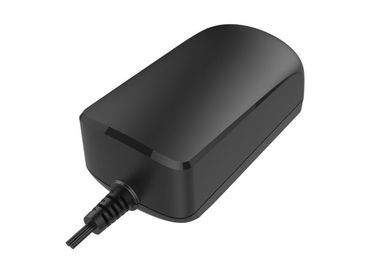

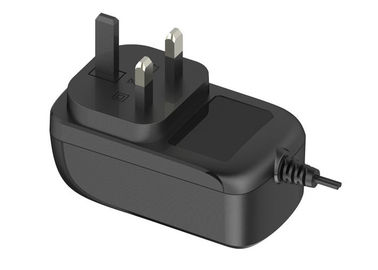

12V 36W universal AC switching wall mount adapter with CE / GS / EMC ETL / PSE / SAA approvals
12V 36W universal ac power adapter below
Product Details:
Input voltage:90 - 264VAC
Output voltage:12 - 24VDC
Output current:1500 - 3000MA
Colour:white black
Safety licences:CE / GS
Connection:EU plug in
DC cable:1.5m
DC plug:5.5X2.5mm
Key specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | Full load for 4 hours | |
| Efficiency: | 88% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64HZ | |
| Input current: | ||
| Inrush current: | ||
| DC Output | Voltage range: | 12-24VDC |
| Current range: | 1500-3000MA | |
| Ripple: | 200mVp-p | |
| Safety Approvals | ETL FCC CE GS CCC PSE KA SAA | |
| Storage Temperature | -20-80 degrees | |
| Normal Working Temperature | 0-40 degrees | |
Features:
1. High efficiency:>88%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OCP,SCP,OVP
5. 2 - 5 pcs free samples are available
Our competitive advantages:
| Quick response to customer's requested |
| High quality standard |
| Competitive pricing:Our priicing is less than others |
| our good lead time is around 15 days after comfirmed the PO |
| Worldwide safety approvals are available |
| 0.1% back up |
| We manage well the shipping cost to worldwide |
Applications:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,nootbook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Quick profile:
1. The 18W universal ac adapter has pass ETL / CE / GS / PSE / EMC/ KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.
3. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
4. Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
5. All adapters have 4 times checking and quality testing before shipping.
6. In order to satisfy customers need, OEM and ODM are hjghly welcome
36W universal wall mount power adapter
