Product Details:
Payment & Shipping Terms:
|
| Product Name: | 24W Wall Mount Adapter | Input: | 90-264v |
|---|---|---|---|
| Output Power: | 24W Max | Warranty: | 2 Years |
| Efficiency: | 88% | MTBF: | 50K Hours |
| Color: | Black | Shipping: | Ocean Or Airfreight |
| Output: | 12v2a | ||
| High Light: | universal ac charger,ac universal power adapter |
||
90 - 264v 12V 2A universal power adapter with EN 60950 standard
24W UK plug AC DC universal wall mount power adapter
Quick Description:
|
Input voltage: |
90-264v |
| Frequency range: | 47-63HZ |
| Output voltage: | 9-24Vdc |
| Output current: | 1000 -2000Ma |
| Color: | Black white |
| Safety approvals | ETL FCC |
| Package | white box |
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Product Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Main Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. Our pricing is much better than other adapter suppliers due to we produe most of the materials.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
6. We have contracted forwarders to manage the best shipping cost through by sea and by air.
7. All adapters have times checking from the raw material to final product before sjipping.

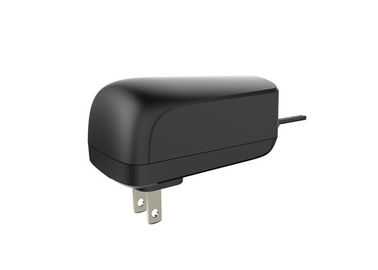

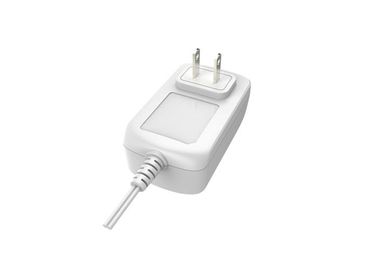

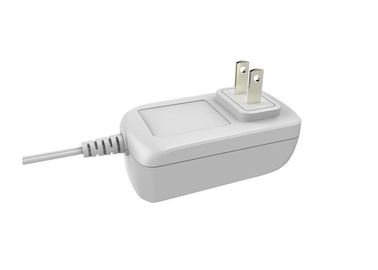

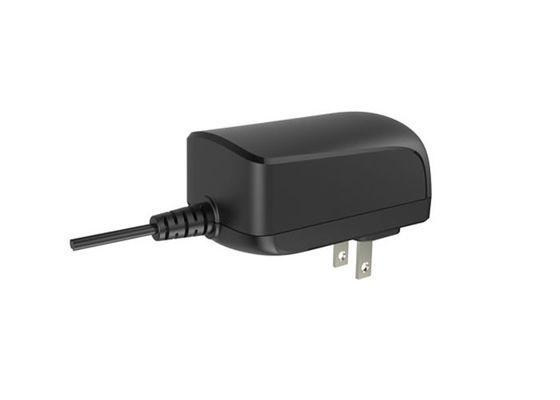

12V 2A US PLUG universal ac dc wall mount power adapter
