Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ac Wall Mount Adapter | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Place Of Origin: | Shenzhen China | Certificates: | CE GS LVD EMC |
| AC Plug: | EU UK | Package: | White Box + Carbon |
| DC Cable: | 1.5 M Standard | Materials: | ABS + PC |
| Highlight: | universal ac charger,ac universal power adapter |
||

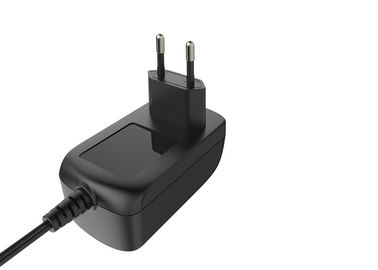

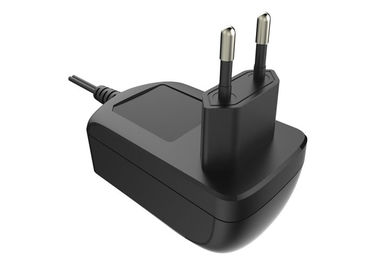

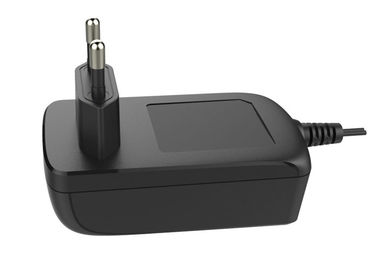

24V 1A Black EU Plug Universal Switching Power Supply With CE GS LVD Certificate
24V1A EU 2PIN wall mount adapter
Brief Description:
1. Input voltage:90 - 264VAC
2. Input frequency:47 - 63Hz
3. Output voltage:12VDC 24VDC
4. Output current:0.75A 1A 2A
5. Colour:white black grey
6. Safety licences:ETL FCC CE GS LVD PSE KC CCC SAA
7. Connection:plug in
8. Package:white box or PE bag
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC - 24vdc |
| Current range: | 750ma - 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL FCC CE GS PSE CCC KA SAA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world.
2. The most important is our pricing is much better than other adapter suppliers.
3. Our lead time is 15 days after recevied the PO.
4. Our R / D team can design the new adapter according to customer's needs.
5 Our QC / QA staffs check and test each adapter before shipping.
6. We always focus on the quality and servise that cause we can provide good quality adapter and prefect after sales servise.
12V 2A 24V 1A EU plug wall mount adapter
