Product Details:
Payment & Shipping Terms:
|
| Color: | White Black | Efficiency: | 86% |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| MTBF: | 50000 Hours | Materials: | ABS + PC |
| DC Cable: | 1.2m 1.5m 1.8m | DC Plug: | 5.5x2.1 / 5.5x2.5 |
| Input: | 100-240v | Output: | 12v3a |
| High Light: | wall power adapter,wall plug power adapter,Wall Power Adapter With US Pin |
||

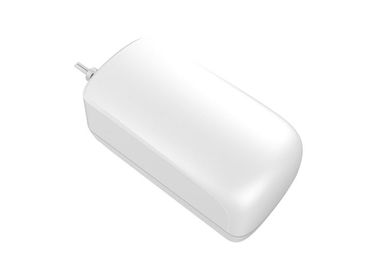

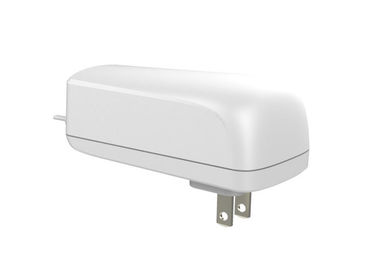

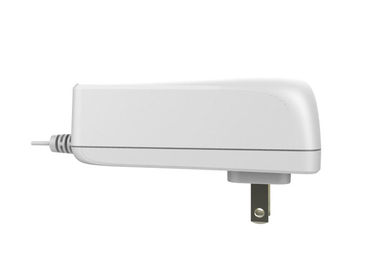

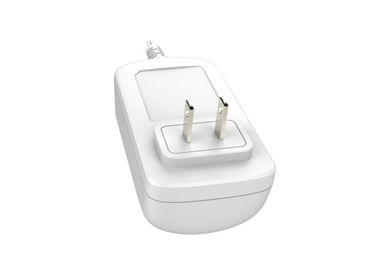

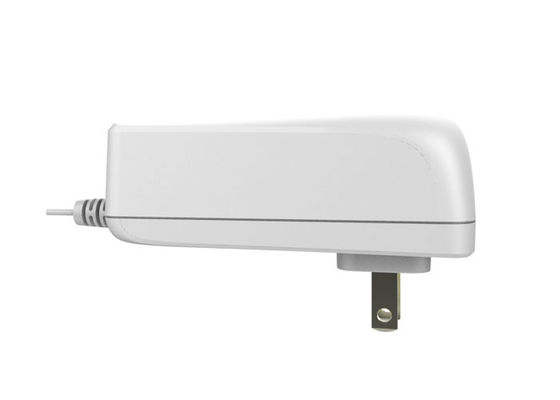

White Wall Mount Power Adapter 12V 3A 36W Wall Power Adapter With US Pin
12V 3A 36W AC wall mount power adapter
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47- 63Hz
Output voltage:12VDC
Output current:3000MA
Colour:white black
Safety licences: FCC PSE CCC SAA
Connection:US plug in
Specification:
| Power | 36W max | |||
| Input voltage | 90-264V | |||
| Output voltage | 12V | |||
| Output current | 3000MA | |||
| Categary | Plug in | |||
| safety approvals | ETL FCC CE PSE KA CCC | |||
| Burn-in test | 4 Hours | |||
| MTBF | 50000 Hours | |||
| Warranty | 2 Years | |||
| Package | white box | |||
| AC pin | US plug | |||
| DC cable | 1.5 m standard | |||
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,nootbook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
| Quick response to customer's requested within 24 hours |
| High quality standard as ISO9001 IEC60950 |
| Competitive pricing |
| Good lead time is 18 days after confirmed the order |
| Worldwide safety approvals are available |
| 0.1% back up of total order quantities |
| Free samples are provied 5pcs max |
Why can you trust us?
1. This adapter has pass CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service is much better than other adapter suppliers.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.
4. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
5.. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
6. Our monthly production capacity is 100,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
