Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Certificate: | ETL FCC | Power Watt: | 36w Max |
| DC Cable: | 1.5m | Ooutput: | 12v 3a |
| High Light: | universal power adapter,ac universal power adapter |
||
12V 3A Universal AC Power Adapter DC / AC Adapter For Router With UL Certificate
12V 3A US 2PIN wall mount adapter below:
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:3000MA
Colour:black
Safety licences:ETL FCC
Connection:US plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 3000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing:most of the materials are produced by ourself and we can manage the cost well.
2. High quality standard as ISO9001 and ISO14001
3. Better lead time is within 15 days
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours
6. Prefect after - sales service should be provided by our QE
7. OEM is available
Why can you trust us?
1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing is much better than other adapter suppliers.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

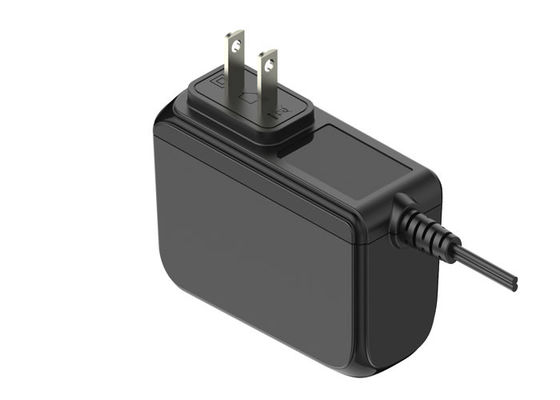

12V 3A US plug AC wall mount power adapter picture:
