Product Details:
Payment & Shipping Terms:
|
| Color: | White | Efficiency: | 88% |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| DC Cable: | 1.5m | Certificate: | Ccc |
| Product Name: | Ac Dc Adapter | Package: | White Bxo + Carbon |
| High Light: | wall plug power adapter,wall mount power supply,CCC Approvals 12 Volt Wall Adapter |
||
Input 100 - 240 V 12V 2A wall mount power adapter with CCC PSE approvals
Product details:
Input voltage:90-264VAC
Input frequency:47-63Hz
Output voltage:12VDC
Output current:2000MA
Colour:Black
Safety licences:CCC PSE
Connection:plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R/D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
Brief company profile:
This adapter has pass ETL/CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.
Q&A:
Q:May I get some free samples for testing?
A:Sure.According to our company rules, we can offer 2 pcs free samples and we are free of the air freight.
Q: What is the lead time of the samples?
A:Normally it is 3-5 days
Q:What is the lead time of the mass order?
A:It is around 15-20 days
Q:What will do if the adapter has any problem?
A:We will make up the same adapter for replacement.

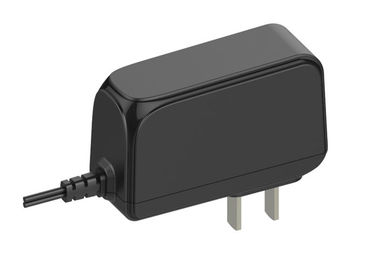

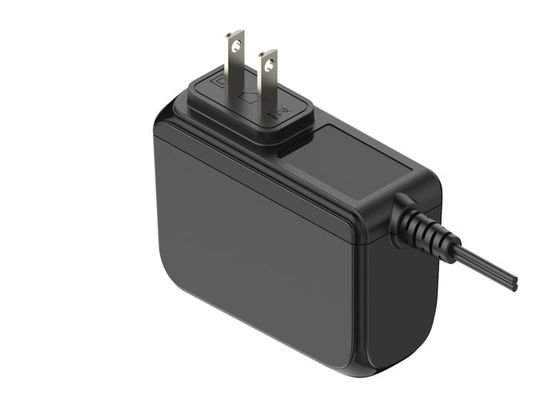

12V 2A universal ac dc wall mount power adaper picture:
