Product Details:
Payment & Shipping Terms:
|
| Color: | White | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Safety Approval: | CE GS | AC Plug: | UK |
| DC Cable: | 1.5m | Product Name: | Ac Dc Adapter |
| Materials: | PVC | MTBF: | 50000 Hours |
| Highlight: | power switching supply,power supply switching |
||
Interchangeable plug adapter with US ,EU, AU, UK Plug With CE ETL KA EMC Approvals
Description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white
Safety licences:CE EMC
Connection:plug in
DC cable:1.5m
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard as ISO9001 and ISO14001
3. Better lead time is within 18 days after we received the formal order
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours by our sales
6. Prefect after-sales service
7. This adapter has pass CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. The most important is our pricing and service are much better than other adapter suppliers.
9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.
10. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
11. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
12. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
13. We can provide very good shipping cost to all customers through our contracted carrier.

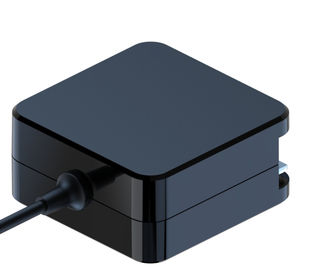

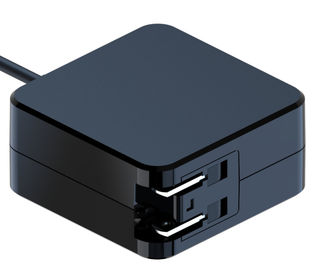

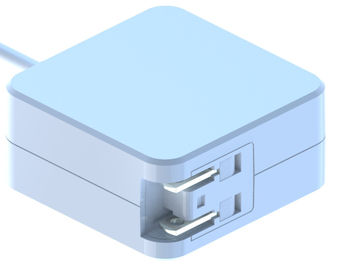

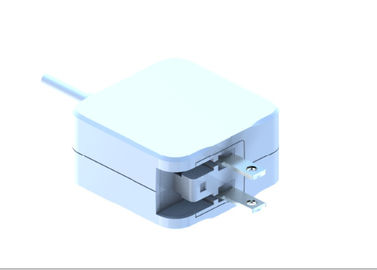

12V 2A US Plug universal ac wall mount power adaper picture:
