AC Switching Power Supply
>
|
| Place of Origin | Shenzhen Guangdong China |
| Brand Name | REEU |
| Certification | ETL/CE/GS/PSE/KA/CCC/FCC |
| Model Number | 18D |
18W 12V 1.5A desktop black universal AC switching power adapter with ETL CE PSE CCC approvals
Brief Description:
Product name:desk - top switching power supply
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12v
Output current:1.5a
Colour:black
Connection:plug in
Safety approval:ETL / CE / PSE / CCC
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 1.5-3.0A | |
| Ripple: | 150mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
| Quick response to customer's requested |
| High quality standard as ISO9001 and ISO14001 |
| Competitive pricing |
| Good lead time is only 15 days after confirmed the order |
| Worldwide safety approvals are available |
| 0.1% back up of the total order quantities for replacement |
| Free samples are provied 5pcs max |
Quick company profile:
1. This adapter has pass ETL CE GS PSE EMC KA CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service is much better than other adapter suppliers.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.
6. Our main market is around the wolrd as North Amercia, EU,UK South America,Middle East and Asia and the adapters were sold to more than 60 countries near the 10 years.

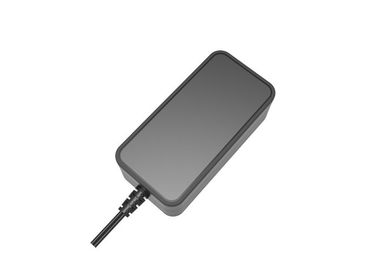

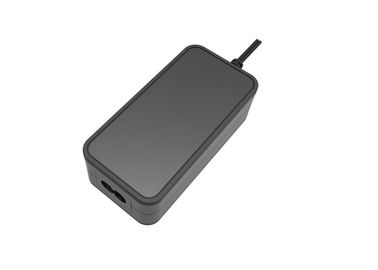

12V 1.5A AC DC desktop power adapter picture view:
