Product Details:
Payment & Shipping Terms:
|
| Color: | Black | High Efficiency: | >88% |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power: | 72W Max | Output: | 12V 6A /24V 2.5A |
| AC Cable: | 1.5 M | MTBF: | 50K Hours |
| Product Name: | Desktop Power Adapter | Place Of Origin: | China |
| Highlight: | power switching supply,power supply switching |
||
90 - 264V 12V 6A AC Switching Power Supply With ETL FCC CE PSE SAA Approvals

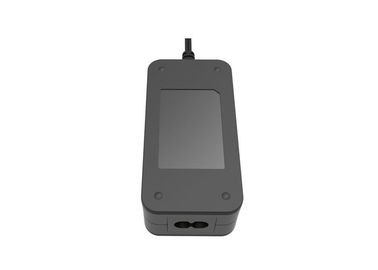

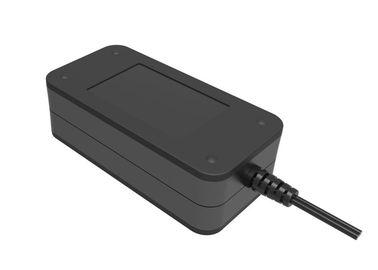

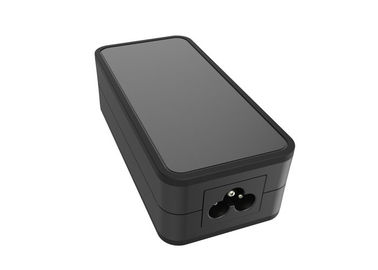

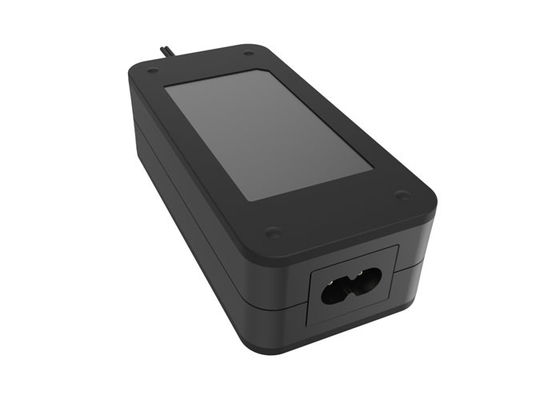

12V 6A AC switching power adapter
Description:
The power supply is sibgle output level and has designed highly reliable and meet international safety and electromagnetic compatibility requirements and have passed universal safety approvals.
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output:12V 6A
Colour:black
AC plug:US EU UK CN JP KA AU
AC cable:1.2m
Specification:
| Input | Rated input voltage | 120-240VAC |
| Input voltage range | 90-264VAC | |
| Rated frequency | 50/60 Hz | |
| Input frequency range | 47-63Hz | |
| Input AC current | 2A max | |
| Inrush current | 20A max | |
| Output | Rated output voltage | 12VDC |
| Rated output current | 6A | |
| Rated power | 72W Max | |
| Ripple and noise | 120mVp--p | |
| Standby power consumption | 0.3W max | |
| Turn-on | 2S | |
| Hold-up | 5mS | |
| OVP | yes | |
| OCP | yes | |
| Short Circuit prodection | yes | |
| Reliability | Hi-pot | 3000 VAC |
| Burn-In | 4hours | |
| Leakage current | 0.25mA | |
| EMI standards | meet | |
| RoHS compliant | meet | |
| MTBF | 50000 hours | |
| Drop test | yes | |
| Insulation resistance | yes | |
| Environmental | Operating temperature | 0 to 40 degrees |
| Operating humidity | 5% to 90% | |
| Storge temperature | -20 degrees to 85 degrees | |
| Storge humidity | -% to 90% | |
| Safety approvals | ETL/FCC/CE/GS/CCC/PSE/KA | |
| Warranty | 2 years | |
Features:
1. High efficiency:>88% at least
2. safety licences:main approvals of the world are available
3. Burn in:100% full load
4. MTBF:50000 hours
Application:
1. Audio equipment:speakers, recording machine
2. Video equipment:TV box,cctv cameras computers
3. Household applicaces:air purifier,water purifier osram led
4. Communication equipment:Mobile phone, notebook, tablet PC
Competitive advantage:
1. Good pricing
2. High quality standard as ISO9001 and ISO14001
3. Better lead time is within 15 days only after received the formal otder
4. Professional R / D team
5. Quick response to customer’s requirement within 24 hours by our oversea sales
6. Prefect after-sales service
Why you can trust us?
This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
12V 6A AC - DC universal desk-top power adapter:
