Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Burn In: | Around 4 Hrs |
|---|---|---|---|
| Efficiency: | 86% | Category: | Wall Mount Adapter |
| DC Cable: | 1.5m | Power Watts: | 7.5w Max |
| Input: | 100-240v | Output: | 12v0.6a |
| Place Of Origin: | China | MTBF: | 50000 Hours |
| Highlight: | power switching supply,power supply switching |
||
7.5W 12V 600MA AC Power Supply Switching With ETL CE GS PSE CCC Approvals
AC DC 12v 600ma power adapter
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:600MA
Colour:white
Connection:plug in
Safety approval:CE PSE ETL CCC
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 2-4 hours | |
| Efficiency: | >83% | |
| MTBF: | 50000 hours | |
| Iusulation: | yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64Hz | |
| Input current: | ||
| Inrush current: | ||
| DC Output | Voltage range: | 12VDC |
| Current range: | 600MA | |
| Ripple: | 120mVp-p | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. 100% testing is a must
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toy |
Competitive advantage:
1. Most of the materials are produced by ourself, we can control the cost very well.
2. High quality standard as ISO9001
3. Better lead time is 15 days after received the formal order
4. Professional R / D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
Why you can trust us?
1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service are much better than other adapter suppliers.
3.We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
6. We provide same quantity new adapters for replacement if there are failed adapter during warranty period.

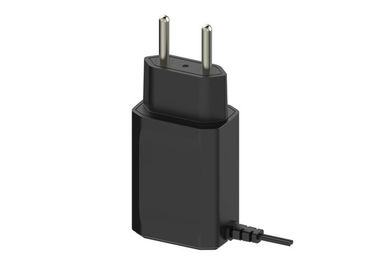

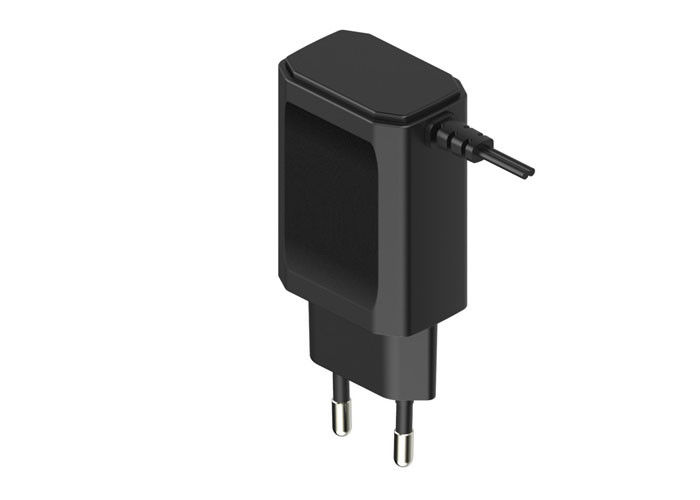

12V 600MA AC DC universal wall mount power adapter:
