Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | Color: | Black |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Efficiency: | 86% | Product Name: | Wall Mount Adapter |
| Place Of Origin: | China | Materials: | PVC |
| Power: | 24- 36w | Input: | 90-264Vac |
| Highlight: | power switching supply,power supply switching |
||
12V 24W / 36W AC Switching Power Supply Universal With ETL CE GS PSE Approvals
24W 36W black universal AC switching power adapter
Brief description:
Product name:wall mount switcing power supply
Input voltage:90 - 264VAC
Output voltage12- 24V
Colour:black
Connection:plug in
Safety approval:ETL / CE / PSE / CCC
Warranty:2 years
Place of origin:Shenzhen China
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 12 -24VDC |
| Current range: | 1500mA-3000ma | |
| Ripple: | 200mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. We produce most of the materials at our own plant, we can better manage the cost.
2. High quality standard as IEC60950 and IEC90065
3. Better lead time is 15 - 20 days after received the formal order
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours by our sales
6. Prefect after-sales service
7. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. The most important is our pricing and service are much better than other adapter suppliers.
9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.
10. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.
11. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
12. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

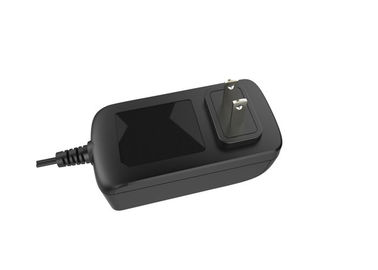

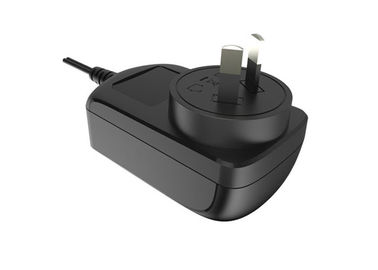

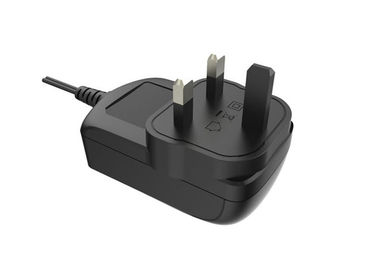

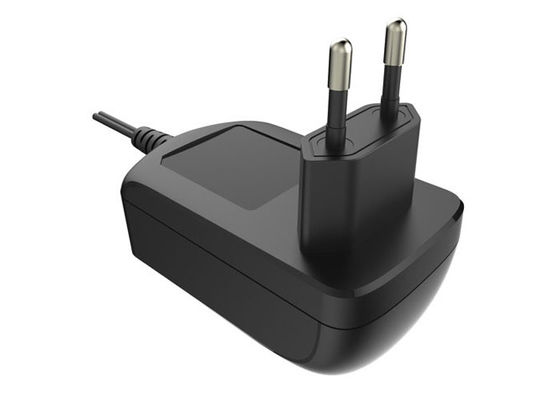

24V 1.5A universal AC - DC power adapter picture view:
