Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | Output Voltage: | 12v 24v |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power Watt: | 36w Max | MTBF: | 50000 Hours |
| Product Name: | Ac Wall Mount Adapter | Place Of Origin: | China |
| Material: | PVC | Package: | White Box + Carbon |
| Highlight: | power switching supply,power supply switching |
||
24V 36W Universal 12 Volt Switching Power Supply AC Low Noise Black / White
12V 24V 36W universal AC switching power adapter
Brief Description:
Product name:AC switching power supply
Input voltage:90 - 264VAC
Output voltage:12 - 24V
Output current:1.5 -3 A
Colour:black / white
Connection:plug in
Safety approval:ETL / CE / PSE / CCC
Warranty:2 years
Place of origin:Shenzhen China
Efficiency:88%
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 12- 24VDC |
| Current range: | 1.5-3A | |
| Ripple: | 200mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
1. LED screen, TV set,
2. AV equipment and other device
3. House appliance
4.Water purifier and ari purifier
Competitive advantage:
1. Good pricing
2. High quality standard as ISO9001 and ISO14001
3. Better lead time is within 20 days after confirmed the order
4. Professional R / D team
5. Quick response to customer’s requirement within 24 hours
6. Prefect after - sales service
Quick company profile:
Our adapters have passed UL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

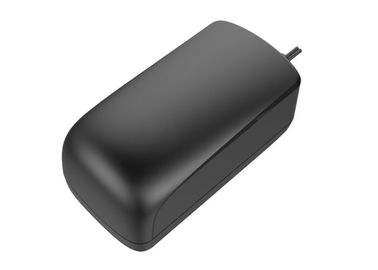

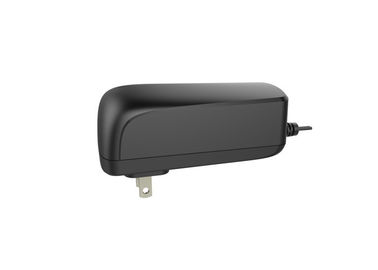

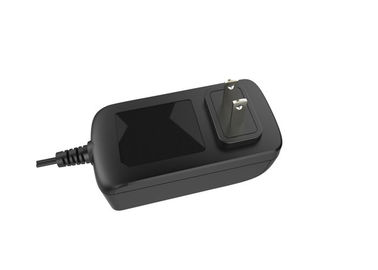

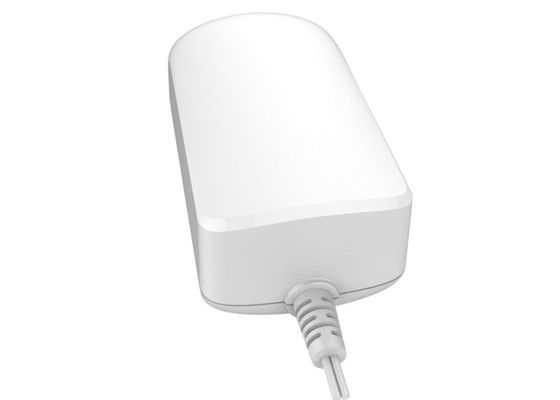

36W universal AC switching power adapter picture view:
