Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | Color: | Black |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power Watt: | 36w Max | Product Name: | Wall Mount Adapter |
| AC Plug: | US UK AU KA JP CN | Output Current: | 1.5A 3A |
| MTBF: | 50000hours | Material: | PVC |
| Highlight: | universal ac dc power adapter,universal power adapter travel,36W 1500ma wall mount switching power supply |
||
24V 1.5A 36W Black Universal AC Power Adapter With Plug In Connection
24V 1.5A 36W black universal AC power adapter
Brief Description:
Product name:wall mount switching power supply
Input voltage:90 - 264VAC
Output voltage:24V
Output current:1500MA
Colour:black / white
Connection:plug in
Safety approval:ETL/ CE / PSE / CCC / KA / PSE / SAA
Warranty:2 years
Place of origin:Shenzhen China
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 24VDC |
| Current range: | 1500mA | |
| Ripple: | 200mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard as ISO9001 and ISO14001
3. Better lead time is 15 days only after received the formal order.
4. Professional R / D team
5. Quick response to customer’s requirement within 24 hours by our sales
6. Prefect after - sales service
Quick company profile:
This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC / SAA safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

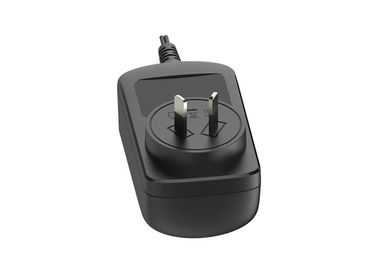

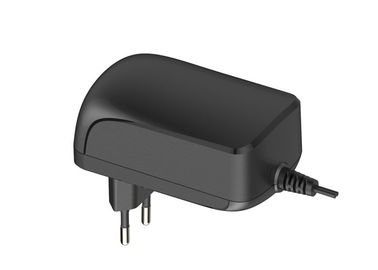

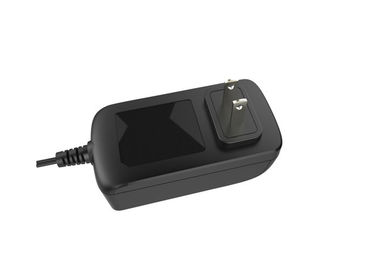

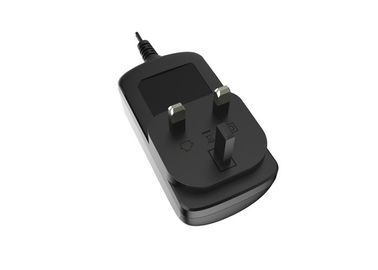

24V 1.5A universal AC - DC power adapter picture
