Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | Output: | 24v1.5a |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power Watt: | 36w Max | Product Name: | Desk Top Switching Power Supply |
| AC Cord: | 1.2m 1.5m 1.8m | DC Cord: | 1.5m Standard |
| Package: | White Box + Carbon | Place Of Origin: | Shenzhen China |
| Highlight: | ac dc charger adapter,universal power adapter travel,24v 36w ac dc power adapter |
||
100 - 240VAC AC DC Power Adapter 24V 36W Black Desktop Universal
Brief description:
Product name:desk - top switcing power supply
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:24V
Output current:1500MA
Colour:black
Connection:plug in
Safety approval:ETL / CE / PSE / CCC / SAA / PSE
Warranty:2 years
AC cable:1.5M
Place of origin:Shenzhen China
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 24VDC |
| Current range: | 1500mA | |
| Ripple: | 200mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R / D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
Quick company profile:
Our adapters have passed ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.Because we produce most of the raw materials at our own plant, we can better manage the cost.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 500,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
We have some contracted forwarders to carry the shipping with lower shipping cost.

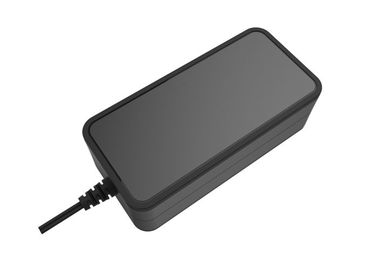

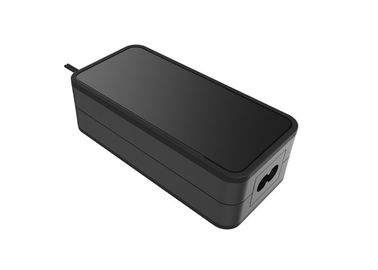

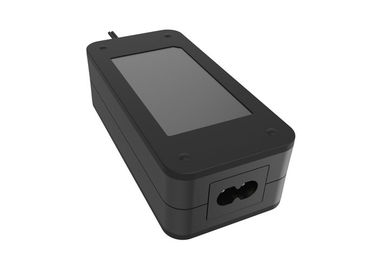

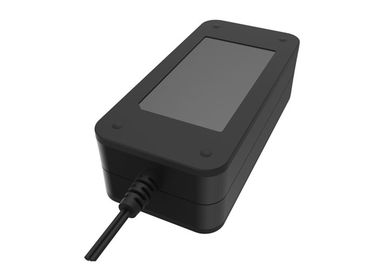

24V 1.5A universal AC - DC desktop power adapter picture view:
