Product Details:
Payment & Shipping Terms:
|
Color: | White | Efficiency: | Energy Star Class 6 |
---|---|---|---|
Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
Output: | 12v2a | Product Name: | Wall Mount Adapter |
Material: | PVC | Package: | White Box + Carbon |
MTBF: | 50000hours | ||
Highlight: | wall plug power adapter,wall mount power supply,PSE Approved Wall Mount Power Supply |

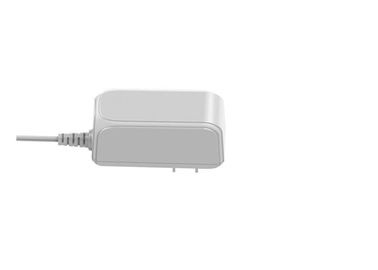

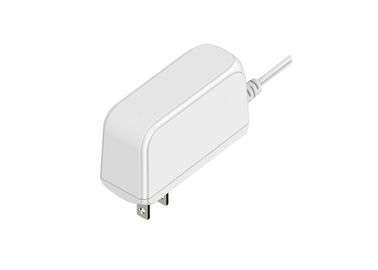

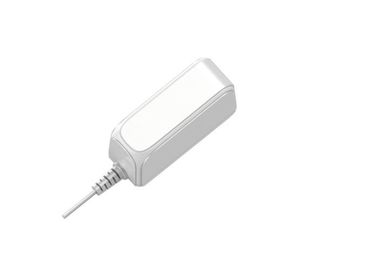

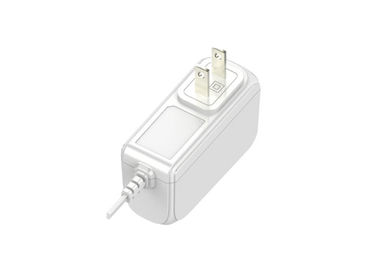

White 24V 1A 12V 2A wall mount adapter with PSE FCC safty approvals
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47-63Hz
Output voltage:12 - 24VDC
Output current:1000 - 2000MA
Colour:white
Safety licences: FCC / CE/GS / PSE / CCC / AU
Connection:US plug in
DC cable:1.5m
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OCP,SCP,OVP
Specification:
Electrical | Hi-pot Test: | 3000VAC |
Burn-In Test: | 100% full load 2-4hours | |
Efficiency: | 86% | |
MTBF: | 50000 hours | |
Warranty | 2 years | |
AC Input | voltage range: | 90-264VAC |
Input frequency: | 47-63Hz | |
Input current: | 0.8A | |
Leakage current: | 0.25mA max at 240VAC input | |
DC Output | Voltage range: | 12VDC |
Current range: | 2000MA | |
Ripple: | 150mVp-p Max | |
Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
Storage Temperature | -20 degrees to 85 degrees | |
Normal Working Temperature | 0 degree to 40 degrees |
Competitive advantage:
1. We have our own materials production to manage the cost very well
2. We strictly follow up the high quality standards as ISO9001 and ISO14001
3. Our better lead time is 15 days only after we received the formal order
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours
6. Prefect after - sales service
Main Application:
Video equipemnt | TV box CCTV, router, set-top-box |
Audio equipment | Speaker, microphone,recording device |
Communication device | smart phone nootbook,tablet PC |
Household appliance | air purifier, water purifier,solar panel |
Medical equipment | cosmetic machine,glucose meter |
others | PS4,segway,game player, electronic toys |
Why can you choose us?
1. This adapter has pass CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service is much better than other adapter suppliers.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
4. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
5. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
6. We have some contracted forwarders to provide the cheaper and fast shipping to all customers.
24V 1A 24W wall mount adapter with US pug:
