Product Details:
Payment & Shipping Terms:
|
| Color: | White/black | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| MTBF: | 50000 Hours | Package: | White Box + Carbon |
| Input: | 90-264V | Power Watts: | 24W |
| Product Name: | Wall Mount Adapter | Place Of Origin: | Shenzhen China |
| High Light: | universal ac dc power adapter,universal power adapter travel,2 Pin 3000ma AC DC Power Adapter |
||

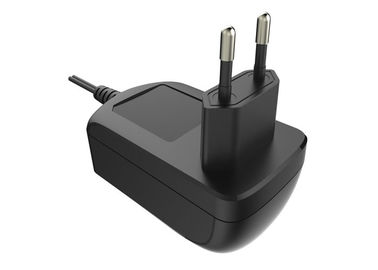

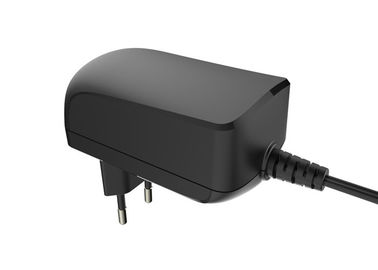

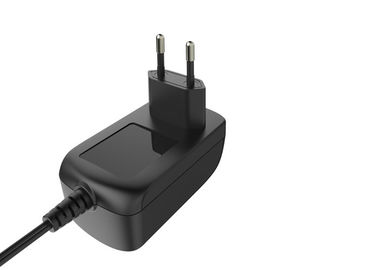

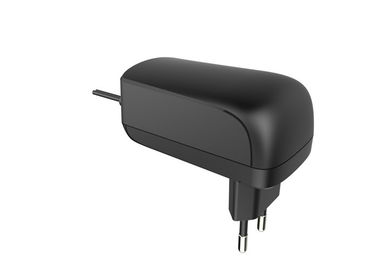

12V 2A AC DC Power Adapter Black / White With 2 Prong EU 2 Pin 3000ma
12V 2A EU 2PIN wall mount adapter
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47- 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white/black
Safety licences:UL / cUL / FCC / CE / GS /PSE / CCC / AU
Connection:EU plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | UL/CUL/FCC/CE/GS/PSE/CCC/KA/SAA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. All protections are available:OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1.Most of the materials are produced by ourself, we can control the cost well
2. High quality standard as ISO9001 and ISO14001
3. We have over 400 first line workers to make sure the delivery time is within 15 days after we received the formal order.
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours by our oversea sales
6. Prefect after-sales service
7. This adapter has pass UL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.
9. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
10. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
11. We provide good shipping to all customers through our contracted carrier
12V 2A AU plug wall mount adaper
