Product Details:
Payment & Shipping Terms:
|
| Color: | White Black | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Product Name: | Ac Adapter | Place Of Origin: | Shenzhen China |
| Package: | White Box + Carbon | Material: | PVC |
| Market: | Australia | Safety: | SAA MEPS |
| High Light: | ac dc charger adapter,universal power adapter travel |
||
90 - 264V 12V 2A AC DC power adapter AU pin for POS system appliance
12V 2A universal ac adapter:
Product details:
Product name:AC wall mount adapter
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white/black
Safety licences:UL / cUL / FCC / SAA
Connection:plug in
DC cable:1.5m
DC plug:5.5x2.1mm
Packge:white box + carbon
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features and advantages:
| Good pricing |
| Better lead time |
| High quality standard ISO9001 |
| Professional R / D team |
| Quick response to custome's requested |
| High efficiency 88% |
| Standby power consumption 0.1w only |
| Low ripple and noise |
| Protection is requested OCP SCP OVP |
| Prefect after sales service |
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Quick review company profile:
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing

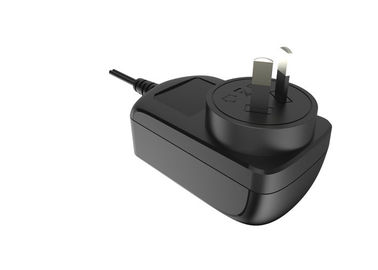

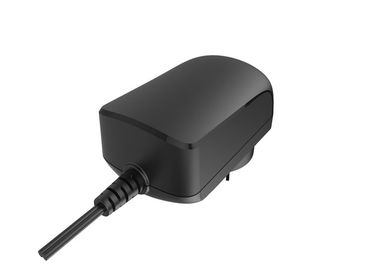

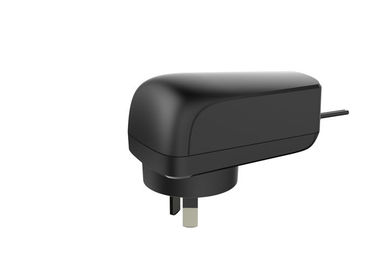

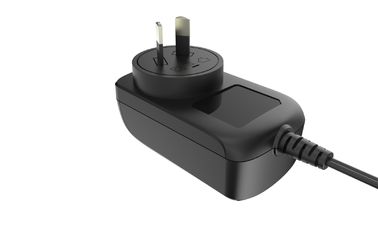

12V 2A AU Plug in universal ac dc wall mount power adaper picture:
