Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | High Efficiency: | >88% |
|---|---|---|---|
| Burn-in: | Full Load For 4 Hours | Warranty: | 2 Years |
| Material: | PVC Endure Heat Above 110 Degrees | Place Of Origin: | Shenzhen China |
| Package: | White Box + Carbon | AC Pin: | US EU UK CN JP KA AU |
| Highlight: | desktop ac adapter,notebook ac adapter |
||

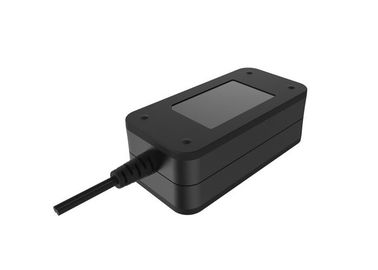

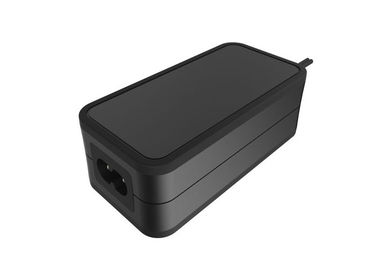

Output 60W 12V 5A universal desk top power adapter with universal safety certificates
12V 5A desktop AC DC universal power adapter:
Brief description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output:12V 5A,24V 2A
Colour:black
AC pin:US,EU,UK,CN,JP
AC cable:1.5m standard
DC cable:1.5m standard
approvals:ETL FCC CE GS LVD CCC PSE KA SAA
Specification:
| Input | Rated input voltage | 120-240VAC |
| Input voltage range | 90-264VAC | |
| Rated frequency | 50/60 Hz | |
| Input frequency range | 47-63Hz | |
| Input AC current | 2A max | |
| Inrush current | 20A max | |
| Output | Rated output voltage | 12VDC |
| Rated output current | 5A | |
| Rated power | 60W Max | |
| Ripple and noise | 120mVp--p | |
| Standby power consumption | 0.3W max | |
| Turn-on | 2S | |
| Hold-up | 5mS | |
| OVP | yes | |
| OCP | yes | |
| Short Circuit prodection | yes | |
| Reliability | Hi-pot | 3000 VAC |
| Burn-In | 4hours | |
| Leakage current | 0.25mA | |
| EMI standards | meet | |
| RoHS compliant | meet | |
| MTBF | 50000 hours | |
| Drop test | yes | |
| Insulation resistance | yes | |
| Environmental | Operating temperature | 0 to 40 degrees |
| Operating humidity | 5% to 90% | |
| Storge temperature | -20 degrees to 85 degrees | |
| Storge humidity | -% to 90% | |
| Safety approvals | ETL/FCC/CE/GS/CCC/PSE/KA | |
| Warranty | 2 years | |
Our competitive advantahes:
| 2 pcs free samples are available |
| samples lead time is 3-5 days only |
| more than 4 hours full load burn in |
| 15-20 lead time is a must |
| we offer very good pricing than others |
Our features:
| High efficiency should be at least 88% |
| MTBF must meet 50000 hours |
| Burn in should be 100% full load for 4 hours |
| Surge can be 6KV |
Application:
1. LCD display and LCD screen
2. Laytop and notebook
3. Electrical toys
4. Wireless communication equipemnts
5. AV devices
Quick company profile:
1. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 years experience and we have professional management in QC, purchasing and production.
2. We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
3. Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
.
Widely usage of the 12V 5A desktop universal power adapter:
Contact Person: James
Tel: +8613728602272
