Product Details:
Payment & Shipping Terms:
|
| Product Name: | AC Power Adapter | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| MTBF: | 50000hours | Input Voltage: | 100 - 240Vac |
| Output Power: | 24W | DC Cable: | 1.2m 1.5m 1.8m |
| Color: | Black | Package: | White Box + Carbon |
| High Light: | ac dc charger adapter,universal power adapter travel |
||

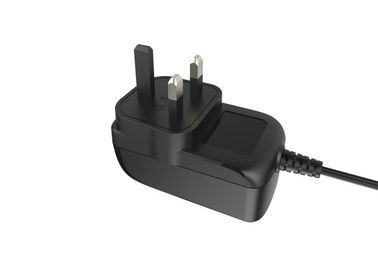

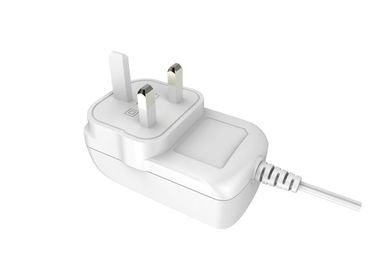

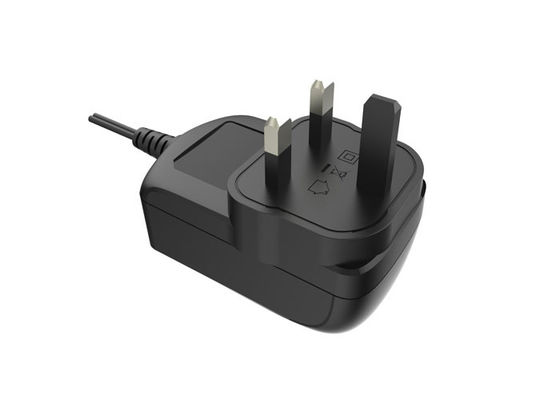

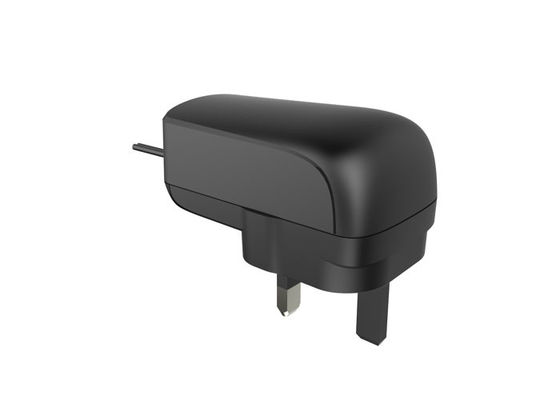

3 prong 24w wall mount UK plug ac dc switching power adapter with CE EMC approvals
12V 2A UK 3PIN AC DC universal wall mount power adapter
Brief Description:
The wall mount AC adapter has full input voltage range 90 to 262VAC,and input frequency is 47 to 63 Hz, the output power is 24W max, the output voltage is a range 9 to 24 VDC, output current is 2000ma max.and has ETL FCC CE GS PSE SAA universal safety ceritificates and has OCP OVP SCP productions to make sure the adapter satety and reliability, and has widely application for conmunication, CCTV, POS system and other household appliance.the key parameters as below:
Input voltage:90-264VAC
Input frequency:47-63Hz
Output voltage:12VDC - 24VDC
Output current:1000 - 2000MA
Colour:white black
Safety licences:ETL FCC CE GS PSE SAA KC BIS
Connection:plug in
MTBF:5K hours
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R / D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
7. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
8. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
9. Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
24V 1A 12V 2A UK plug universal ac dc wall mount power adapter
