White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug 3 Pin
  • White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug 3 Pin
  • White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug 3 Pin
  • White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug 3 Pin
  • White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug 3 Pin

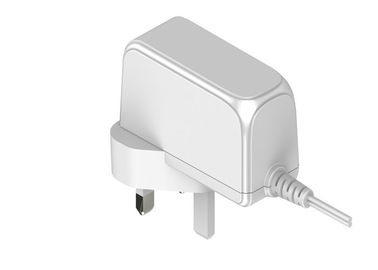

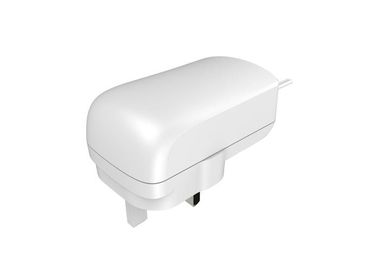

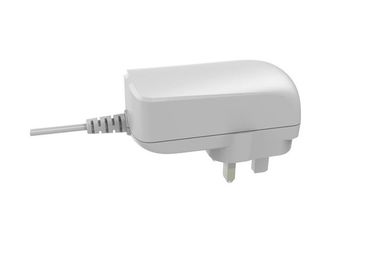

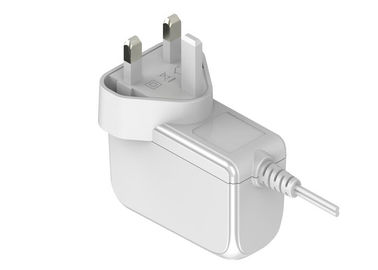

White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug 3 Pin

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification FCC EMI CE GS KA PSE CCC SAA
Model Number 24VA
Product Details
Product Name:
Ac Power Adapter
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Place Of Origin:
Shenzhen China
Materials:
ABS + PC
Connection:
Plug In
AC Plug:
UK EU US CN JP AU
DC Cable:
1.5m Standard
DC Plug:
5.5 X 2.1 Mm
High Light:

wall power adapter

,

wall mount power supply

,

uk 3pin wall mount adapter

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

White 12V 2A AC DC Wall Adapter With UK EU US CN JP AU Plug



24V 1A 12V 2A UK 3PIN wall mount adapter



Brief Description:



1. Input voltage:90 - 264VAC

2. Input frequency:47 - 63Hz

3. Output voltage:12VDC

4. Output current:2000MA

5. Colour:white / black

6. Safety licences:PSE / FCC / CE / GS

7. Connection:UK plug in

8. Package: white box + carbon



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2 - 4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90 - 264VAC
Input frequency: 47 - 63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 2000MA
Ripple: 150mVp-p Max
Safety Approvals  FCC CE GS PSE CCC KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees



Features:



1. High efficiency:>83%

2. Stand by power consumption:0.1w(max)

3. Low ripple&noise:150mVp-p(max)

4. Four protection available:OLP,OCP,SCP,OVP



 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1.We have produce most of the materials by ourself, we can better manage the cost,our pricing is much better than others.



2. We strictly fellow up the ISO 9001 and ISO14001 quality management.



3. We have over 400 first line works at the production department to guarantee the lead time is within 15 days after we received the confirmed the order.



4. Our engineers can design the good adapters according to market trend and OEM / ODM also are welcome.



5. Our adapters were sold to over 50 countries and through our oversea sales who handle any requirements from customers within 24 hours.



6. Our QE department offer very quick and good after sales service.



7. We provide 3 pcs free samples to customers for testing without shipping cost.



8. We have some contracted carriers to provide very cheaper shipping cost to all customers.





24W UK plug wall mount adaper
