Product Details:
Payment & Shipping Terms:
|
| Product Name: | Desktop Power Supply | Place Of Origin: | Shenzhen China |
|---|---|---|---|
| Input: | 90 - 264VAC | Output: | 12v 1.5a |
| Power Watt: | 18W | Colour: | Black |
| AC Cable: | 1.2m 1.5m | DC Cable: | 1.2m 1.5m |
| MTBF: | 50000 Hours | Warranty: | 2 Years |
| Highlight: | desktop ac adapter,desktop power supply |
||
12V 1.5A universal AC DC desktop switching power supply with ETL CE PSE CCC approvals
12V 1.25A 12V 1.5A 12V 2.0A desktop AC DC universal power adapter:
Brief description:
| Product name: | AC DC power adapter |
| input voltage: | 100-240VAC |
| Output voltage: | 12 VDC |
| Output crrent: | 1.25A 1.5A 2A |
| materials: | 94V-0 |
| AC input | 2PIN C8 |
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 1.5-3.0A | |
| Ripple: | 150mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R/D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
Quick company profile:
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.

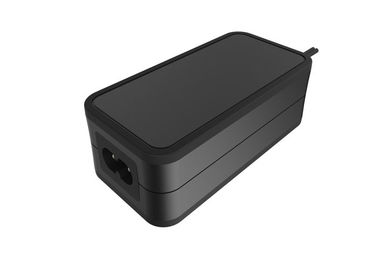

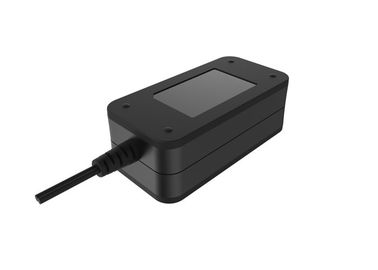

12V 1.5A desktop power adapter picture view:
