Product Details:
Payment & Shipping Terms:
|
| Product Name: | AC Desk Top Power Adapter | Input: | 90 - 264VAC |
|---|---|---|---|
| Output: | 12V 3A | AC Plug: | US EU UK CN JP KA |
| AC Cord: | 1.5m Standard | DC Cable: | 1.2m 1.5m 1.8m |
| DC Plug: | 5.5 X 2.1mm | Warranty: | 2 Years |
| Highlight: | desktop ac adapter,desktop power supply |
||

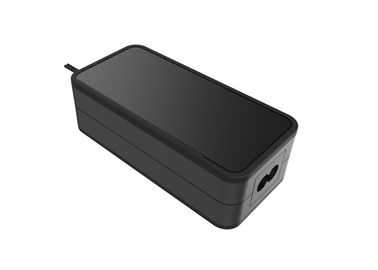

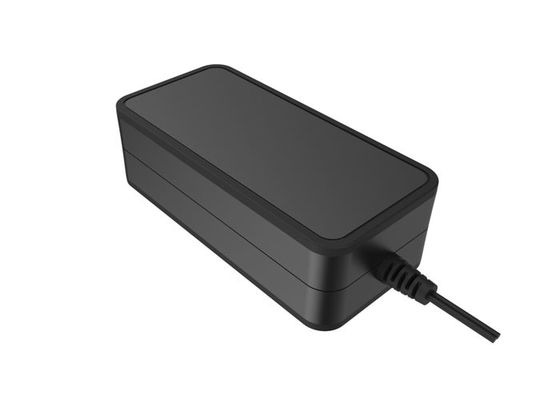

12V 3A black 36W universal desktop ac adapter with ETL CE GS PSE CCC KA approvals
12V 3A desk top power supply:
Description:
The desktop universal ac adapter input voltage is 90 - 264vac and frequency is 47 - 63Hz, output is 12v 3a and the max power is 36w.The power supply has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
Input characteristics:
1. normal input voltage:100 - 240 Vac
2. Input frequency:47 - 64Hz
3. No load consumption:Max non load power consumption is leaa then 0.1w
4. input protection:3.15A FUSE
Output characteristics:
1. rate voltage:12Vdc
2. rate current:3000ma
3. Ripple and noise:Our roipple and noise is 120mVp-p peak to peak or less.
4. Protection: over voltage protection, over current protection and short circuit protection
Specification:
| Electrical | Hi-pot Test: | 3000VDC |
| Burn-In Test: | 4 Hours | |
| Efficiency: | 88% | |
| MTBF: | 50000 hours | |
| Leakage current: | 0.25mA | |
| AC Input | voltage range: | 100- 240vac |
| Input frequency: | 47-64hz | |
| Input current: | 1.5 max | |
| Inrush current: | 30A at 110vac | |
| DC Output | Voltage range: | 12v - 24v |
| Current range: | 1500ma - 3000ma | |
| Ripple: | 120mVp-p | |
| Safety Approvals | ETL FCC CE GS CCC KA PSE EMC | |
| Storage Temperature | -20 - 85 degrees | |
| Normal Working Temperature |
|
|
Fearture:
1. Good qilaity and high stablity
2. High efficiency level
3. Long time and 100% full load burn-in
4. Worldwide approvals are available
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker,recording device |
| Communication device | nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Our pricing is much better than others, due to we have very strictly purchasing policy to make sure alll materials have high quality and very good cost.
2. We have 10 production linns to make sure our production capacity is 50,000 pcs daily and our lead time is 15 days after we recevied the formal order.
3. Our adapters have 4 times testing before shipping, the qualty is very.
4. We have more than 30 engineers and we can design good adapter and can provide custom adapeter according to customers need.
5. We have contracted carriers tom make sure the best shipping cost and fast shipping.
6. We have QE department to provide very good after sales service.
Desk top ac dc switching power supply:
